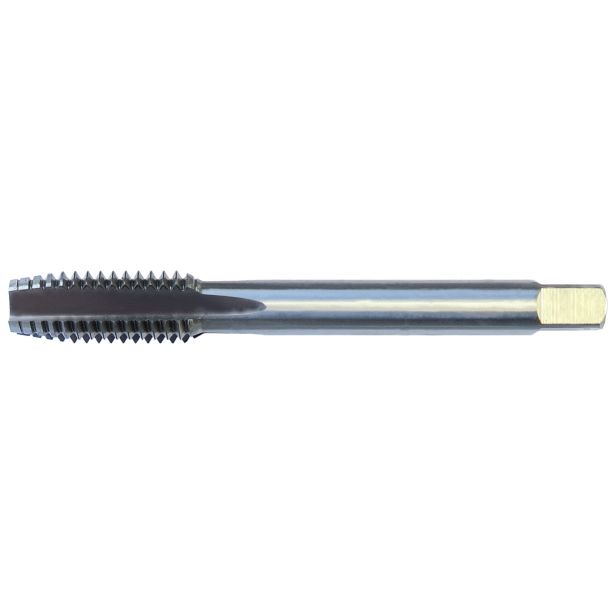

THSG - UNF Taps

In stock
SKU
THSGUNF
M2 High Speed Steel                          Precision ground thread Class 2B                           ISO R.529 BS949 Pt 2
Parallel shank with square Straight Flute Right hand threading
Full form with Taper, Second, or Bottoming lead for UNF threads to ANSI B1.1
Usually supplied in bright ground finish Tap basic dimensions shown in mm
May be used by hand or in machines to produce accurate threads in most materials



Grouped product items
Product Name Diameter TPI Thread Lead Thread Length Overall Length Shank Diam Across the Flats Qty
THSG 12 UNF HSS Second Tap
£13.82
-
2 in stock
12 28 Second 17 62 5.6 4.5
THSG 2 UNF HSS Taper Tap
£30.73
-
1 in stock
2 64 Taper 9.5 44.5 2.8 2.24
THSG 2 UNF HSS Second Tap
£30.73
-
Out of stock
2 64 Second 9.5 44.5 2.8 2.24
Out of stock
THSG 2 UNF HSS Bottoming Tap
£30.73
-
5 in stock
2 64 Bottoming 9.5 44.5 2.8 2.24
THSG 2 UNF HSS Tap Set
£92.21
-
3 in stock
2 64 Set (3 Pieces) 9.5 44.5 2.8 2.24
THSG 3 UNF HSS Taper Tap
£30.73
-
Out of stock
3 56 Taper 9.5 44.5 2.8 2.24
Out of stock
THSG 3 UNF HSS Second Tap
£30.73
-
Out of stock
3 56 Second 9.5 44.5 2.8 2.24
Out of stock
THSG 3 UNF HSS Bottoming Tap
£30.73
-
Out of stock
3 56 Bottoming 9.5 44.5 2.8 2.24
Out of stock
THSG 3 UNF HSS Tap Set
£92.21
-
1 in stock
3 56 Set (3 Pieces) 9.5 44.5 2.8 2.24
THSG 4 UNF HSS Taper Tap
£20.76
-
1 in stock
4 48 Taper 13 48 3.15 2.5
THSG 4 UNF HSS Second Tap
£20.76
-
4 in stock
4 48 Second 13 48 3.15 2.5
THSG 4 UNF HSS Bottoming Tap
£20.76
-
Out of stock
4 48 Bottoming 13 48 3.15 2.5
Out of stock
THSG 4 UNF HSS Tap Set
£62.24
-
6 in stock
4 48 Set (3 Pieces) 13 48 3.15 2.5
THSG 5 UNF HSS Taper Tap
£20.76
-
2 in stock
5 44 Taper 13 48 3.15 2.5
THSG 5 UNF HSS Second Tap
£20.76
-
6 in stock
5 44 Second 13 48 3.15 2.5
THSG 5 UNF HSS Bottoming Tap
£20.76
-
1 in stock
5 44 Bottoming 13 48 3.15 2.5
THSG 5 UNF HSS Tap Set
£62.24
-
1 in stock
5 44 Set (3 Pieces) 13 48 3.15 2.5
THSG 6 UNF HSS Taper Tap
£12.49
-
2 in stock
6 40 Taper 13 50 3.55 2.8
THSG 6 UNF HSS Second Tap
£12.49
-
1 in stock
6 40 Second 13 50 3.55 2.8
THSG 6 UNF HSS Bottoming Tap
£12.49
-
1 in stock
6 40 Bottoming 13 50 3.55 2.8
THSG 6 UNF HSS Tap Set
£37.46
-
1 in stock
6 40 Set (3 Pieces) 13 50 3.55 2.8
THSG 8 UNF HSS Taper Tap
£12.49
-
2 in stock
8 36 Taper 13 53 4.5 3.55
THSG 8 UNF HSS Second Tap
£12.49
-
13 in stock
8 36 Second 13 53 4.5 3.55
THSG 8 UNF HSS Bottoming Tap
£12.49
-
6 in stock
8 36 Bottoming 13 53 4.5 3.55
THSG 8 UNF HSS Tap Set
£37.46
-
1 in stock
8 36 Set (3 Pieces) 13 53 4.5 3.55
THSG 10 UNF HSS Taper Tap
£12.49
-
2 in stock
10 32 Taper 16 58 5.0 4.0
THSG 10 UNF HSS Second Tap
£12.49
-
Out of stock
10 32 Second 16 58 5.0 4.0
Out of stock
THSG 10 UNF HSS Bottoming Tap
£12.49
-
Out of stock
10 32 Bottoming 16 58 5.0 4.0
Out of stock
THSG 10 UNF HSS Tap Set
£37.46
-
Out of stock
10 32 Set (3 Pieces) 16 58 5.0 4.0
Out of stock
THSG 12 UNF HSS Taper Tap
£13.82
-
2 in stock
12 28 Taper 17 62 5.6 4.5
THSG 12 UNF HSS Bottoming Tap
£13.82
-
2 in stock
12 28 Bottoming 17 62 5.6 4.5
THSG 1/4 UNF HSS Taper Tap
£10.57
-
5 in stock
1/4 28 Taper 19 66 6.3 5.0
THSG 1/4 UNF HSS Second Tap
£10.57
-
3 in stock
1/4 28 Second 19 66 6.3 5.0
THSG 1/4 UNF HSS Bottoming Tap
£10.57
-
2 in stock
1/4 28 Bottoming 19 66 6.3 5.0
THSG 1/4 UNF HSS Tap Set
£31.70
-
2 in stock
1/4 28 Set (3 Pieces) 19 66 6.3 5.0
THSG 5/16 UNF HSS Taper Tap
£11.72
-
4 in stock
5/16 24 Taper 22 72 8.0 6.3
THSG 5/16 UNF HSS Second Tap
£11.72
-
2 in stock
5/16 24 Second 22 72 8.0 6.3
THSG 5/16 UNF HSS Bottoming Tap
£11.72
-
6 in stock
5/16 24 Bottoming 22 72 8.0 6.3
THSG 5/16 UNF HSS Tap Set
£35.16
-
Out of stock
5/16 24 Set (3 Pieces) 22 72 8.0 6.3
Out of stock
THSG 5/16 UNF HSS Tin Bottoming Tap
£18.83
-
5 in stock
5/16 24 Bottoming + Tin 22 72 8.0 6.3
THSG 3/8 UNF HSS Taper Tap
£14.98
-
29 in stock
3/8 24 Taper 24 80 10.0 8.0
THSG 3/8 UNF HSS Second Tap
£14.98
-
Out of stock
3/8 24 Second 24 80 10.0 8.0
Out of stock
THSG 3/8 UNF HSS Bottoming Tap
£14.98
-
3 in stock
3/8 24 Bottoming 24 80 10.0 8.0
THSG 3/8 UNF HSS Tap Set
£44.96
-
Out of stock
3/8 24 Set (3 Pieces) 24 80 10.0 8.0
Out of stock
THSG 7/16 UNF HSS Taper Tap
£21.32
-
1 in stock
7/16 20 Taper 25 85 8.0 6.3
THSG 7/16 UNF HSS Second Tap
£21.32
-
2 in stock
7/16 20 Second 25 85 8.0 6.3
THSG 7/16 UNF HSS Bottoming Tap
£21.32
-
1 in stock
7/16 20 Bottoming 25 85 8.0 6.3
THSG 7/16 UNF HSS Tap Set
£63.98
-
Out of stock
7/16 20 Set (3 Pieces) 25 85 8.0 6.3
Out of stock
THSG 7/16 UNF HSS Tin Bottoming Tap
£33.62
-
6 in stock
7/16 20 Bottoming + TIN 25 85 8.0 6.3
THSG 1/2 UNF HSS Taper Tap
£21.32
-
2 in stock
1/2 20 Taper 29 89 9.0 7.1
THSG 1/2 UNF HSS Second Tap
£21.32
-
1 in stock
1/2 20 Second 29 89 9.0 7.1
THSG 1/2 UNF HSS Bottoming Tap
£21.32
-
40 in stock
1/2 20 Bottoming 29 89 9.0 7.1
THSG 1/2 UNF HSS Tap Set
£63.98
-
4 in stock
1/2 20 Set (3 Pieces) 29 89 9.0 7.1
THSG 9/16 UNF HSS Taper Tap
£26.90
-
5 in stock
9/16 18 Taper 30 95 11.2 9.0
THSG 9/16 UNF HSS Second Tap
£26.90
-
1 in stock
9/16 18 Second 30 95 11.2 9.0
THSG 9/16 UNF HSS Bottoming Tap
£26.90
-
1 in stock
9/16 18 Bottoming 30 95 11.2 9.0
THSG 9/16 UNF HSS Tap Set
£80.69
-
Out of stock
9/16 18 Set (3 Pieces) 30 95 11.2 9.0
Out of stock
THSG 5/8 UNF HSS Taper Tap
£31.70
-
2 in stock
5/8 18 Taper 32 102 12.5 10.0
THSG 5/8 UNF HSS Second Tap
£31.70
-
1 in stock
5/8 18 Second 32 102 12.5 10.0
THSG 5/8 UNF HSS Bottoming Tap
£31.70
-
16 in stock
5/8 18 Bottoming 32 102 12.5 10.0
THSG 5/8 UNF HSS Tap Set
£95.08
-
3 in stock
5/8 18 Set (3 Pieces) 32 102 12.5 10.0
THSG 11/16 UNF HSS Taper Tap
£59.54
-
5 in stock
11/16 16 Taper - - - -
THSG 11/16 UNF HSS Second Tap
£59.54
-
2 in stock
11/16 16 Second - - - -
THSG 11/16 UNF HSS Bottoming Tap
£59.54
-
4 in stock
11/16 16 Bottoming - - - -
THSG 3/4 UNF HSS Taper Tap
£48.03
-
1 in stock
3/4 16 Taper 37 112 14.0 11.2
THSG 3/4 UNF HSS Second Tap
£48.03
-
1 in stock
3/4 16 Second 37 112 14.0 11.2
THSG 3/4 UNF HSS Bottoming Tap
£48.03
-
2 in stock
3/4 16 Bottoming 37 112 14.0 11.2
THSG 3/4 UNF HSS Tap Set
£144.08
-
Out of stock
3/4 16 Set (3 Pieces) 37 112 14.0 11.2
Out of stock
THSG 7/8 UNF HSS Taper Tap
£65.32
-
Out of stock
7/8 14 Taper 38 118 16.0 12.5
Out of stock
THSG 7/8 UNF HSS Second Tap
£65.32
-
1 in stock
7/8 14 Second 38 118 16.0 12.5
THSG 7/8 UNF HSS Bottoming Tap
£65.32
-
Out of stock
7/8 14 Bottoming 38 118 16.0 12.5
Out of stock
THSG 7/8 UNF HSS Tap Set
£195.93
-
Out of stock
7/8 14 Set (3 Pieces) 38 118 16.0 12.5
Out of stock
THSG 1" UNF HSS Taper Tap
£78.76
-
2 in stock
1" 12 Taper 45 130 18.0 14.0
THSG 1" UNF HSS Second Tap
£78.76
-
2 in stock
1" 12 Second 45 130 18.0 14.0
THSG 1" UNF HSS Bottoming Tap
£78.76
-
1 in stock
1" 12 Bottoming 45 130 18.0 14.0
THSG 1" UNF HSS Tap Set
£236.28
-
3 in stock
1" 12 Set (3 Pieces) 45 130 18.0 14.0
THSG 1.1/8 UNF HSS Taper Tap
£128.71
-
Out of stock
1,1/8 12 Taper 48 138 20.0 16.0
Out of stock
THSG 1.1/8 UNF HSS Second Tap
£128.71
-
Out of stock
1,1/8 12 Second 48 138 20.0 16.0
Out of stock
THSG 1.1/8 UNF HSS Bottoming Tap
£128.71
-
Out of stock
1,1/8 12 Bottoming 48 138 20.0 16.0
Out of stock
THSG 1.1/4 UNF HSS Taper Tap
£174.81
-
2 in stock
1,1/4 12 Taper 51 151 22.4 18.0
THSG 1.1/4 UNF HSS Second Tap
£174.81
-
1 in stock
1,1/4 12 Second 51 151 22.4 18.0
THSG 1.1/4 UNF HSS Bottoming Tap
£174.81
-
1 in stock
1,1/4 12 Bottoming 51 151 22.4 18.0
THSG 1.1/4 UNF HSS Tap Set
£524.41
-
1 in stock
1,1/4 12 Set (3 Pieces) 51 151 22.4 18.0
THSG 1.3/8 UNF HSS Taper Tap
£195.93
-
Out of stock
1,3/8 12 Taper 57 162 25.0 20.0
Out of stock
THSG 1.3/8 UNF HSS Second Tap
£195.93
-
Out of stock
1,3/8 12 Second 57 162 25.0 20.0
Out of stock
THSG 1.3/8 UNF HSS Bottoming Tap
£195.93
-
Out of stock
1,3/8 12 Bottoming 57 162 25.0 20.0
Out of stock
THSG 1.1/2 UNF HSS Taper Tap
£236.28
-
Out of stock
1,1/2 12 Taper 60 170 28.0 22.4
Out of stock
THSG 1.1/2 UNF HSS Second Tap
£236.28
-
Out of stock
1,1/2 12 Second 60 170 28.0 22.4
Out of stock
THSG 1.1/2 UNF HSS Bottoming Tap
£236.28
-
Out of stock
1,1/2 12 Bottoming 60 170 28.0 22.4
Out of stock
THSG 1.1/2 UNF HSS Tap Set
£708.83
-
Out of stock
1,1/2 12 Set (3 Pieces) 60 170 28.0 22.4
Out of stock
*IMPORTANT. Length of thread is indicative only and can vary between manufacturers within normal practice. It is not necessary to
have a long thread length because of the thread length that is required to be made - in recent years shorter thread lengths are being
recommended increasingly, especially when for machine operations. ISO R.529 sets a maximum threaded length, but not a minimum.

Taps may be supplied with coatings such as TiN (Titanium nitride) to special order, the quantity ordered determining the unit price.

Taps to special tolerance classes (i.e. other than 2B) may be supplied to special order, the quantity determining the unit price.
oversize taps (for making threads which are to be subsequently plated, or for insert repair) may also be ordered, and are
subject to quantity scales as above. Please be sure to specify the exact oversize required, or the insert repair system used.

Sets of Taps
A set of three hand taps in this series will consist of taps with taper, second, and bottoming leads. They are full form, and so
differ only in the length of the chamfered lead provided, so it may not always be necessary to use a full sequence of three taps to
make the finished thread [compare this with serial form taps -shown here (in metric size) under DIN352. Unified serial form taps
may be supplied, but only to special order].

# Unified number sizes. Nominal “inch” sizes for unified screw threads below 1/4” major diameter are no longer recognised — since the
introduction of the unified system in 1949. The major diameter in inches of the number sizes now used is given for reference below.
Requests for UNC or UNF diameters below 1/4” , but expressed as inches (which have never officially existed) may occasionally still be met.
“1/8” UNC and UNF can be supplied as #5, but other diameters have no exact equivalent and would be completely special.
