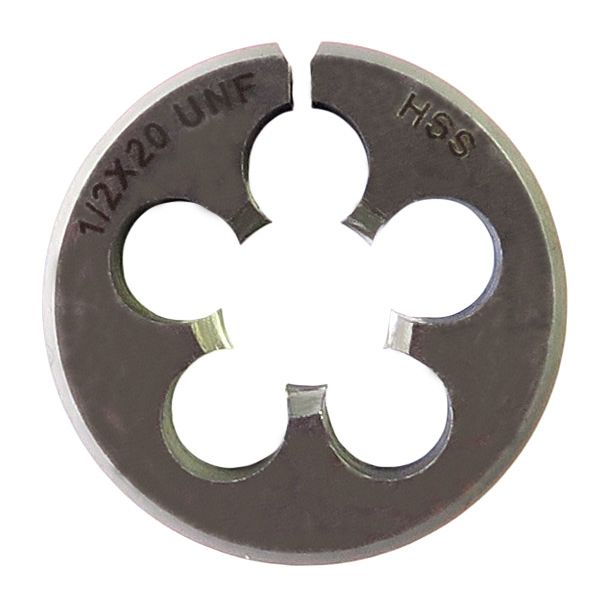

TDHS - UNF Circular Dies

In stock

SKU

TDHSUNF

M2 High Speed Steel                         Precision unified thread Class 2A                          BS1127 (1950)
Normal entry - 1.5 pitch chamfer lead                                                                               Right hand threading
Usually supplied bright finish                                                                                             for UNF threads to ANSI B1.1

Left hand table shows dies with default diameter, usually the smallest practical diameter, and which will normally be
provided if only the threading diameter is specified. The right hand table shows other outside diameters (usually larger)
which are also often available from stock.

Grouped product items
Product Name	Diameter	TPI	Outside Diameter	Qty
TDHS 5 UNF x 13/16 HSS Die £34.58 - 1 in stock	5	44	13/16
TDHS 0 UNF x 13/16 HSS Die £42.26 - Out of stock	0	80	13/16	Out of stock
TDHS 1 UNF x 13/16 HSS Die £42.25 - 1 in stock	1	72	13/16
TDHS 2 UNF x 13/16 HSS Die £42.26 - Out of stock	2	64	13/16	Out of stock
TDHS 3 UNF x 13/16 HSS Die £42.26 - Out of stock	3	56	13/16	Out of stock
TDHS 6 UNF x 13/16 HSS Die £34.58 - 5 in stock	6	40	13/16
TDHS 8 UNF x 13/16 HSS Die £34.58 - 1 in stock	8	36	13/16
TDHS 10 UNF x 13/16 HSS Die £34.58 - 1 in stock	10	32	13/16
TDHS 12 UNF x 13/16 HSS Die £34.58 - 4 in stock	12	28	13/16
TDHS 1/4 UNF x 13/16 HSS Die £27.47 - Out of stock	1/4	28	13/16	Out of stock
TDHS 1/4 UNF x 1" HSS Die £32.65 - Out of stock	1/4	28	1"	Out of stock
TDHS 5/16 UNF x 1" HSS Die £32.66 - 1 in stock	5/16	24	1"
TDHS 3/8 UNF x 1" HSS Die £32.66 - 1 in stock	3/8	24	1"
TDHS 3/8 UNF x 1.5/16 HSS Die £48.03 - Out of stock	3/8	24	1,5/16	Out of stock
TDHS 7/16 UNF x 1.5/16 HSS Die £48.03 - Out of stock	7/16	20	1,5/16	Out of stock
TDHS 7/16 UNF x 1.1/2 HSS Die £71.07 - Out of stock	7/16	20	1,1/2	Out of stock
TDHS 1/2 UNF x 1.5/16 HSS Die £48.03 - 2 in stock	1/2	20	1,5/16
TDHS 1/2 UNF x 1.1/2 HSS Die £55.70 - 1 in stock	1/2	20	1,1/2
TDHS 9/16 UNF x 1.5/16 HSS Die £48.03 - Out of stock	9/16	18	1,5/16	Out of stock
TDHS 5/8 UNF x 1.1/2 HSS Die £55.70 - Out of stock	5/8	18	1,1/2	Out of stock
TDHS 3/4 UNF x 1.1/2 HSS Die £55.70 - 1 in stock	3/4	16	1,1/2
TDHS 7/8 UNF x 2" HSS Die £82.61 - 1 in stock	7/8	14	2"
TDHS 1" UNF x 2" HSS Die £82.61 - Out of stock	1"	12	2"	Out of stock
TDHS 1.1/2 UNF x 3" HSS Die £180.57 - Out of stock	1,1/2	12	3"	Out of stock
