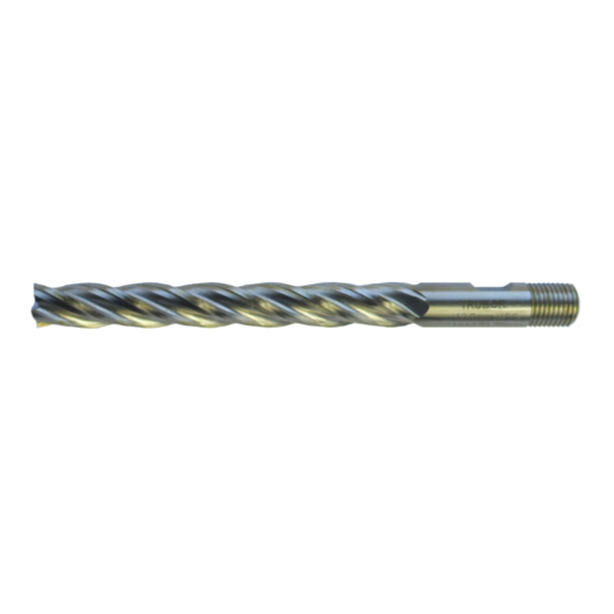

520V Extra Long End Mills

In stock
SKU
520V
Parallel shank combination type*                             M2 High Speed Steel                                    Works standard
Flatted shank+ thread 30° Right hand spiral Right hand cutting
Shank tolerance h6 20 TPI Whit form thread Teeth end cutting, but not to centre

*shanks are designed to fit plain collects, as thread crests are below shank diameter, as well as Clarkson

and similar threaded collects, and standard side-lock holders for shanks to DIN1835 form B
Grouped product items
Product Name Diameter Shank Diam Cutting Length Total Length Number flutes Qty
520V 8.00mm x 115mm E/L End Mill
£48.36
-
1 in stock
8.00mm 10 70 115 -
520V 10.00mm x 145mm E/L End Mill
£58.03
-
16 in stock
10.00mm 10 100 145 -
520V 12.00mm x 145mm E/L End Mill
£61.91
-
Out of stock
12.00mm 12 100 145 -
Out of stock
520V 14.00mm x 130mm E/L End Mill - POA
£0.00
-
Out of stock
14.00mm 16 85 130 -
Out of stock
520V 16.00mm x 170mm E/L End Mill
£87.04
-
5 in stock
16.00mm 16 125 170 -
520V 18.00mm x 145mm E/L End Mill
£106.38
-
6 in stock
18.00mm 16 100 145 -
520V 20.00mm x 170mm E/L End Mill
£116.06
-
6 in stock
20.00mm 16 125 170 -
520V 22.00mm x 178mm E/L End Mill - POA
£0.00
-
Out of stock
22.00mm 25 120 178 -
Out of stock
520V 25.00mm x 210mm E/L End Mill - POA
£0.00
-
Out of stock
25.00mm 25 150 210 -
Out of stock
520V 28.00mm x 198mm E/L End Mill
£235.98
-
1 in stock
28.00mm 25 140 198 -
520V 30.00mm x 198mm E/L End Mill - POA
£0.00
-
Out of stock
30.00mm 25 140 198 -
Out of stock
520V 32.00mm x 222mm E/L End Mill - POA
£0.00
-
Out of stock
32.00mm 32 160 222 -
Out of stock
520V 35.00mm x 242mm E/L End Mill
£290.15
-
2 in stock
35.00mm 32 180 242 -
520V 40.00mm x 210mm E/L End Mill - POA
£0.00
-
Out of stock
40.00mm 32 150 210 -
Out of stock
520V 50.00mm x 210mm E/L End Mill
£541.60
-
4 in stock
50.00mm 32 150 210 -
520V 3/8 x 5.3/4 E/L End Mill
£58.03
-
Out of stock
3/8 3/8 4 5,3/4 -
Out of stock
520V 1/2 x 5.3/4 E/L End Mill
£61.91
-
5 in stock
1/2 1/2 4 5,3/4 -
520V 5/8 X 6.3/4 E/L End Mill - POA
£0.00
-
Out of stock
5/8 5/8 5 6,3/4 -
Out of stock
520V 3/4 x 6.3/4 E/L End Mill
£116.05
-
4 in stock
3/4 5/8 5 6,3/4 -
520V 1" x 8.1/4 E/L End Mill
£183.76
-
1 in stock
1" 1 6 8,1/4 -
520V 1.1/4 x 8.1/4 E/L End Mill - POA
£0.00
-
Out of stock
1,1/4 1,1/4 6 8,1/4 -
Out of stock
520V 1.1/2 x 8.1/4 E/L End Mill
£338.50
-
1 in stock
1,1/2 1,1/4 6 8,1/4 -
520V 2" x 8.1/4 E/L End Mill
£541.60
-
6 in stock
2 1,1/4 6 8,1/4 6
