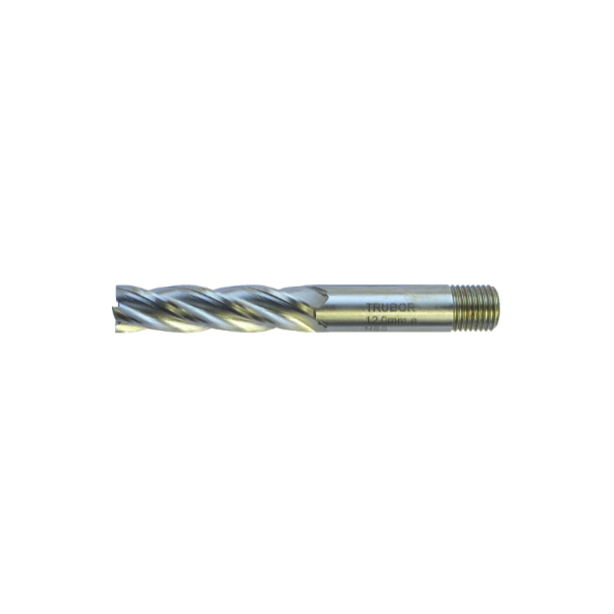

520L Long Series End Mills

In stock

SKU

520L

Parallel shank with thread*                                 M2 High Speed Steel                                            BSS122 Part 4
Threaded shank                                                 30° Right hand spiral                                             Right hand cutting
Shank tolerance h8                                            20 TPI Whit Form Thread                                      Teeth end cutting, but not to centre

*shanks are designed to fit plain collects, as thread crests are below shank diameter, as well as Clarkson and similar threaded collects.
A metric standard, DIN1835 Type D, has been used to describe the shanks.

Grouped product items
Product Name	Diameter	Shank Diam	Cutting Length	Total Length	Number flutes	Qty
520L 2.50mm L/S End Mill £14.89 - 5 in stock	2.50mm	6	19	63.5	-
520L 3.00mm L/S End Mill £14.89 - 30 in stock	3.00mm	6	19	63.5	4
520L 3.50mm L/S End Mill £16.06 - 49 in stock	3.50mm	6	25.5	70	4
520L 4.00mm L/S End Mill £14.89 - 4 in stock	4.00mm	6	25.5	70	4
520L 4.50mm L/S End Mill £16.06 - 31 in stock	4.50mm	6	25.5	70	4
520L 5.00mm L/S End Mill £14.89 - Out of stock	5.00mm	6	31.5	76	4	Out of stock
520L 5.50mm L/S End Mill £16.06 - 55 in stock	5.50mm	6	31.5	76	4
520L 6.00mm L/S End Mill £14.89 - 26 in stock	6.00mm	6	31.5	76	4
520L 6.50mm L/S End Mill £20.32 - 3 in stock	6.50mm	10	35	79.5	4
520L 7.00mm L/S End Mill £19.55 - 55 in stock	7.00mm	10	34	79.5	4
520L 7.50mm L/S End Mill £20.50 - 10 in stock	7.50mm	10	34	79.5	4
520L 8.00mm L/S End Mill £18.77 - 40 in stock	8.00mm	10	34	79.5	4
520L 8.50mm L/S End Mill £21.47 - 1 in stock	8.50mm	10	37	82.5	4
520L 9.00mm L/S End Mill £20.32 - Out of stock	9.00mm	10	37	82.5	4	Out of stock
520L 9.50mm L/S End Mill £29.01 - 20 in stock	9.50mm	-	-	-	-
520L 10.00mm L/S End Mill £18.77 - 79 in stock	10.00mm	10	37	82.5	4
520L 10.50mm L/S End Mill £34.82 - 3 in stock	10.50mm	12	41.5	89	4
520L 11.00mm L/S End Mill £25.15 - 1 in stock	11.00mm	12	41.5	89	4
520L 11.50mm L/S End Mill £36.74 - 8 in stock	11.50mm	-	-	-	-
520L 12.00mm L/S End Mill £22.06 - 26 in stock	12.00mm	12	49.5	95	4
520L 12.50mm L/S End Mill - POA £0.00 - Out of stock	12.50mm	-	-	-	-	Out of stock
520L 13.00mm L/S End Mill £30.57 - 5 in stock	13.00mm	12	50	95	4
520L 14.00mm L/S End Mill £29.79 - 12 in stock	14.00mm	12	57	101.5	4
520L 15.00mm L/S End Mill £38.10 - 9 in stock	15.00mm	16	58.5	108.5	4
520L 15.50mm L/S End Mill £38.10 - 5 in stock	15.50mm	16	58.5	108.5	-
520L 16.00mm L/S End Mill £36.75 - 2 in stock	16.00mm	16	58.5	108.5	4
520L 17.00mm L/S End Mill £54.16 - Out of stock	17.00mm	16	67	115	4	Out of stock
520L 18.00mm L/S End Mill £44.50 - 2 in stock	18.00mm	16	70	115	4
520L 19.00mm L/S End Mill £61.91 - 12 in stock	19.00mm	16	76	121.5	4
520L 20.00mm L/S End Mill £50.28 - Out of stock	20.00mm	16	76	121.5	4	Out of stock
520L 21.00mm L/S End Mill £73.49 - 2 in stock	21.00mm	25	85.5	143	-
520L 22.00mm L/S End Mill £73.49 - 9 in stock	22.00mm	25	85.5	143	6
520L 23.00mm L/S End Mill £73.49 - 2 in stock	23.00mm	25	92	149	-
520L 24.00mm L/S End Mill £90.92 - 7 in stock	24.00mm	25	92	149	6
520L 25.00mm L/S End Mill £94.78 - 9 in stock	25.00mm	25	100	157	6
520L 26.00mm L/S End Mill £114.13 - 3 in stock	26.00mm	25	98.5	157	6
520L 27.00mm L/S End Mill £125.73 - 1 in stock	27.00mm	25	98.5	157	-
520L 28.00mm L/S End Mill £125.73 - 5 in stock	28.00mm	25	98.5	157	6
520L 29.00mm L/S End Mill £125.73 - 1 in stock	29.00mm	25	98.5	157	-
520L 30.00mm L/S End Mill £119.92 - 4 in stock	30.00mm	25	98.5	157	6
520L 32.00mm x 25mm Shank L/S End Mill £148.94 - 6 in stock	32.00mm	25	100	159	6
520L 32.00mm x 32mm Shank L/S End Mill £148.94 - 1 in stock	32.00mm	32	101.5	163.5	6
520L 34.00mm x 25mm Shank L/S End Mill £183.76 - 1 in stock	34.00mm	25	100	159	6
520L 34.00mm x 32mm Shank L/S End Mill £183.76 - 9 in stock	34.00mm	32	101.5	163.5	6
520L 35.00mm x 25mm Shank L/S End Mill £179.89 - 2 in stock	35.00mm	25	100	159	6
520L 35.00mm x 32mm Shank L/S End Mill £179.89 - 3 in stock	35.00mm	32	101.5	163.5	6
520L 36.00mm x 25mm Shank L/S End Mill £201.17 - 1 in stock	36.00mm	25	100	159	6
520L 36.00mm x 32mm Shank L/S End Mill £201.17 - 1 in stock	36.00mm	32	101.5	163.5	6
520L 38.00mm x 25mm Shank L/S End Mill £224.38 - Out of stock	38.00mm	25	100	159	6	Out of stock
520L 38.00mm x 32mm Shank L/S End Mill - POA £0.00 - Out of stock	38.00mm	32	101.5	163.5	6	Out of stock
520L 40.00mm x 25mm Shank L/S End Mill £214.70 - Out of stock	40.00mm	25	101.5	159	8	Out of stock
520L 40.00mm x 32mm Shank L/S End Mill £214.70 - 1 in stock	40.00mm	32	101.5	163.5	8
520L 42.00mm x 25mm Shank L/S End Mill £261.13 - 1 in stock	42.00mm	25	101.5	159	8
520L 42.00mm x 32mm Shank L/S End Mill £261.13 - 1 in stock	42.00mm	32	101.5	163.5	8
520L 44.00mm x 25mm Shank L/S End Mill £319.17 - 1 in stock	44.00mm	25	101.5	159	8
520L 44.00mm x 32mm Shank L/S End Mill £319.17 - 1 in stock	44.00mm	32	101.5	163.5	8
520L 45.00mm x 25mm Shank L/S End Mill £251.46 - 1 in stock	45.00mm	25	101.5	159	8
520L 45.00mm x 32mm Shank L/S End Mill £251.46 - 1 in stock	45.00mm	32	101.5	163.5	8
520L 50.00mm x 25mm Shank L/S End Mill £328.83 - 1 in stock	50.00mm	25	101.5	159	8
520L 50.00mm x 32mm Shank L/S End Mill £328.83 - 1 in stock	50.00mm	32	101.5	163.5	8
520L 3/32 L/S End Mill £21.09 - 13 in stock	3/32	1/4	25/64	2,1/64	4
520L 1/8 L/S End Mill £14.89 - 26 in stock	1/8	1/4	3/4	2,1/2	4
520L 5/32 L/S End Mill £16.06 - 15 in stock	5/32	1/4	1	2,3/4	4
520L 3/16 L/S End Mill £14.89 - 24 in stock	3/16	1/4	1	2,3/4	4
520L 7/32 L/S End Mill £16.06 - 3 in stock	7/32	1/4	1,1/4	3	4
520L 1/4 L/S End Mill £14.89 - 13 in stock	1/4	1/4	1,1/4	3	4
520L 9/32 L/S End Mill £20.32 - 40 in stock	9/32	3/8	1,11/32	3,1/8	4
520L 5/16 L/S End Mill £19.15 - 3 in stock	5/16	3/8	1,11/32	3,1/8	4
520L 11/32 L/S End Mill £21.29 - 28 in stock	11/32	3/8	1,15/32	3,1/4	4
520L 3/8 L/S End Mill £17.80 - 25 in stock	3/8	3/8	1,15/32	3,1/4	4
520L 13/32 L/S End Mill £27.07 - 2 in stock	13/32	3/8	1,1/2	3,1/4	4
520L 7/16 L/S End Mill £25.73 - 7 in stock	7/16	1/2	1,5/8	3,1/2	4
520L 15/32 L/S End Mill £31.91 - 7 in stock	15/32	1/2	1,7/8	3,3/4	4
520L 1/2 L/S End Mill £23.99 - 12 in stock	1/2	1/2	1,15/32	3,3/4	4
520L 17/32 L/S End Mill £40.62 - Out of stock	17/32	1/2	2,1/4	4	4	Out of stock
520L 9/16 L/S End Mill £35.21 - 3 in stock	9/16	1/2	2,1/4	4	4
520L 19/32 L/S End Mill £46.42 - 3 in stock	19/32	5/8	2,5/16	4,9/32	4
520L 5/8 L/S End Mill £37.14 - 17 in stock	5/8	5/8	2,5/16	4,9/32	4
520L 11/16 L/S End Mill £52.23 - 11 in stock	11/16	5/8	2,3/4	4,19/32	4
520L 3/4 L/S End Mill £50.29 - 14 in stock	3/4	5/8	3	4,25/32	4
520L 13/16 L/S End Mill £98.66 - 5 in stock	13/16	1	3,1/16	5,3/8	6
520L 7/8 L/S End Mill £90.92 - 3 in stock	7/8	1	3,3/8	5,5/8	6
520L 15/16 L/S End Mill £102.52 - 1 in stock	15/16	1	3,5/8	5,7/8	6
520L 1" L/S End Mill £88.97 - 2 in stock	1	1	3,15/16	6,3/16	6
520L 1.1/16 L/S End Mill £131.54 - 1 in stock	1,1/16	1	3,7/8	6,3/16	6
520L 1.1/8 L/S End Mill £131.54 - Out of stock	1,1/8	1	3,7/8	6,3/16	6	Out of stock
520L 1.3/16 L/S End Mill £164.42 - 9 in stock	1,3/16	2	3,7/8	6,3/16	6
520L 1.1/4 L/S End Mill £148.94 - Out of stock	1,1/4	2	3,15/16	6,1/4	6	Out of stock
520L 1.3/8 L/S End Mill £218.58 - Out of stock	1,3/8	1	3,15/16	6,1/4	6	Out of stock
520L 1.5/16 L/S End Mill - POA £0.00 - Out of stock	1,5/16	-	-	-	-	Out of stock
520L 1.7/16 L/S End Mill - POA £0.00 - Out of stock	1,7/16	1	3,15/16	6,1/4	6	Out of stock
520L 1.1/2 x 1 L/S End Mill £220.51 - 1 in stock	1,1/2	1	3,15/16	6,1/4	6
520L 1.1/2 x 1.1/4 L/S End Mill - POA £0.00 - Out of stock	1,1/2	1,1/4	4	6,7/16	6	Out of stock
520L 1.5/8 x 1 L/S End Mill £297.88 - 12 in stock	1,5/8	1	3,15/16	6,1/4	-
520L 1.5/8 x 1.1/4 L/S End Mill £297.88 - 1 in stock	1,5/8	2	4	6,1/4	8
520L 1.3/4 x 1 L/S End Mill £319.17 - 2 in stock	1,3/4	1	4	6,1/4	8
520L 1.3/4 x 1.1/4 L/S End Mill - POA £0.00 - Out of stock	1,3/4	1,1/4	4	6,7/16	8	Out of stock
520L 2" x 1 L/S End Mill £328.83 - 1 in stock	2	1	4	6,1/4	8
520L 2 x 1.1/4 L/S End Mill £328.83 - 1 in stock	2	1,1/4	4	6,7/16	8

Details

Intermediate sizes may be provided to special order, the quantity ordered determining the unit price.
