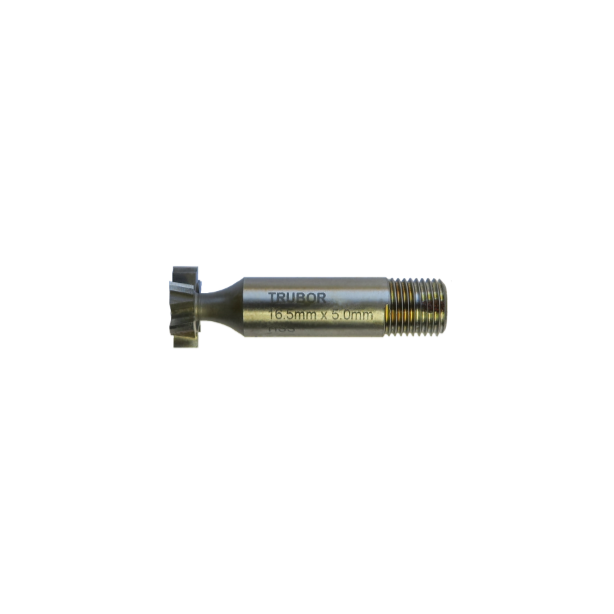

535A Woodruff Cutters

In stock

SKU

535A

Parallel shank with thread*                                  M2 High Speed Steel                               BSS122 Part 4
Threaded shank                                                   For standard key slots                             Right hand cutting
Shank tolerance h8                                              20TPI Whit Form Thread                         Left and Right Spiral Teeth

*shanks are designed to fit plain collets, as thread crests are below shank diameter, as well as Clarkson and similar
threaded collets. A metric standard, DIN1835 Type D, has been used to describe the shanks.

Grouped product items
Product Name	BS Key Number	Head diameter	Width	Shank Diam	Key DIN6888 P9	Total Length	Number Teeth	Qty
535A M10.5 x 1.5 Woodruff Cutter £46.43 - 4 in stock	-	10.50	1.5	12	-	57	6
535A M10.5 x 2 Woodruff Cutter £46.43 - 17 in stock		10.50	2	12	2 x 3.7	57	6
535A M10.5 x 2.5 Woodruff Cutter £48.36 - 18 in stock		10.50	2.5	12	2.5 x 3.7	57	6
535A M10.5 x 3 Woodruff Cutter £45.46 - 3 in stock		10.50	3	12	3 x 3.7	57	6
535A M13.5 x 2 Woodruff Cutter £53.20 - 19 in stock		13.50	2	12	2 x 5	57	6
535A M13.5 x 2.5 Woodruff Cutter £52.25 - 15 in stock		13.50	2.5	12	2.5 x 5	57	6
535A M13.5 x 3 Woodruff Cutter £49.32 - 11 in stock		13.50	3	12	3 x 5	57	6
535A M13.5 x 4 Woodruff Cutter £53.20 - 21 in stock		13.50	4	12	4 x 5	57	6
535A M16.5 x 2.5 Woodruff Cutter £80.27 - 2 in stock		16.50	2.5	12	2.5 x 6.5	57	6
535A M16.5 x 3 Woodruff Cutter £69.63 - 36 in stock		16.50	3	12	3 x 6.5	57	6
535A M16.5 x 4 Woodruff Cutter £70.60 - 14 in stock		16.50	4	12	4 x 6.5	57	6
535A M16.5 x 5 Woodruff Cutter £70.61 - 20 in stock		16.50	5	12	5 x 6.5	57	6
535A M19.5 x 3 Woodruff Cutter £69.64 - 4 in stock		19.50	3	12	3 x 7.5	57	6
535A M19.5 x 4 Woodruff Cutter £69.64 - 14 in stock		19.50	4	12	4 x 7.5	57	6
535A M19.5 x 5 Woodruff Cutter £78.33 - 9 in stock		19.50	5	12	5 x 7.5	57	6
535A M22.5 x 4 Woodruff Cutter £82.23 - 11 in stock		22.50	4	12	4 x 9	63.5	8
535A M22.5 x 5 Woodruff Cutter £83.17 - 2 in stock		22.50	5	12	5 x 9	63.5	8
535A M22.5 x 6 Woodruff Cutter £86.08 - 5 in stock		22.50	6	12	6 x 9	63.5	8
535A M25.5 x 5 Woodruff Cutter £94.78 - Out of stock		25.50	5	12	5 x 10	70	8	Out of stock
535A M25.5 x 6 Woodruff Cutter £91.04 - 12 in stock		25.50	6	12	6 x 10	70	8
535A M25.5 x 7 Woodruff Cutter £83.17 - 6 in stock		25.50	7	12	7 x 10	70	8
535A M25.5 x 8 Woodruff Cutter £83.17 - 11 in stock		25.50	8	12	8 x 10	70	8
535A M28.5 x 5 Woodruff Cutter £104.45 - 14 in stock		28.50	5	12	5 x 11	70	8
535A M28.5 x 6 Woodruff Cutter £92.84 - 4 in stock		28.50	6	12	6 x 11	70	8
535A M28.5 x 7 Woodruff Cutter £108.32 - 19 in stock		28.50	7	12	7 x 11	70	8
535A M28.5 x 8 Woodruff Cutter £92.84 - 21 in stock		28.50	8	12	8 x 11	70	8
535A M28.5 x 10 Woodruff Cutter £112.77 - 2 in stock	-	-	-	-	-	-	-
535A M32.5 x 5 Woodruff Cutter £112.20 - 7 in stock		32.50	5	12	5 x 13	70	10
535A M32.5 x 6 Woodruff Cutter £104.45 - 11 in stock		32.50	6	12	6 x 13	70	10
535A M32.5 x 7 Woodruff Cutter £112.19 - 9 in stock		32.50	7	12	7 x 13	70	10
535A M32.5 x 8 Woodruff Cutter £106.38 - 10 in stock		32.50	8	12	8 x 13	70	10
535A M35.5 x 6 Woodruff Cutter £135.40 - 6 in stock		35.50	6	12	6 x 14	76	10
535A M35.5 x 7 Woodruff Cutter £139.27 - 1 in stock		35.50	7	12	7 x 14	76	10
535A M35.5 x 8 Woodruff Cutter £139.27 - 4 in stock		35.50	8	12	8 x 14	76	10
535A M35.5 x 9 Woodruff Cutter £143.13 - 8 in stock		35.50	9	12	9 x 14	76	10
535A M35.5 x 10 Woodruff Cutter £143.13 - 4 in stock	-	35.50	10	12	-	76	10
535A M38.5 x 7 Woodruff Cutter £145.07 - 10 in stock		38.50	7	12	7 x 15	76	10
535A M38.5 x 8 Woodruff Cutter £145.07 - 8 in stock		38.50	8	12	8 x 15	76	10
535A M38.5 x 9 Woodruff Cutter £148.94 - 2 in stock		38.50	9	12	9 x 15	76	10
535A M38.5 x 10 Woodruff Cutter £123.79 - Out of stock		38.50	10	12	10 x 15	76	10	Out of stock
535A M45.5 x 10 Woodruff Cutter £194.15 - Out of stock		45.50	10	12	10 x 16	76	12	Out of stock
535A BS 204 Woodruff Cutter £54.16 - 2 in stock	BS 204	1/2	1/16	1/2		2,1/4	6
535A BS 304 Woodruff Cutter £51.26 - Out of stock	BS 304	1/2	3/32	1/2		2,1/4	6	Out of stock
535A BS 404 Woodruff Cutter £50.29 - 3 in stock	BS 404	1/2	1/8	1/2		2,1/4	8
535A BS 305 Woodruff Cutter £79.30 - 2 in stock	BS 305	5/8	3/32	1/2		2,1/4	6
535A BS 405 Woodruff Cutter £79.30 - 31 in stock	BS 405	5/8	1/8	1/2		2,1/4	6
535A BS 505 Woodruff Cutter £77.37 - 27 in stock	BS 505	5/8	5/32	1/2		2,1/4	6
535A BS 406 Woodruff Cutter £75.43 - 11 in stock	BS 406	3/4	1/8	1/2		2,1/4	6
535A BS 406 S Woodruff Cutter £131.54 - 3 in stock	-	-	-	-	-	-	-
535A BS 506 Woodruff Cutter £87.04 - 24 in stock	BS 506	3/4	5/32	1/2		2,1/4	6
535A BS 606 Woodruff Cutter £75.43 - 2 in stock	BS 606	3/4	3/16	1/2		2,1/4	6
535A BS 507 Woodruff Cutter £88.97 - 13 in stock	BS 507	7/8	5/32	1/2		2,1/2	8
535A BS 607 Woodruff Cutter £100.58 - Out of stock	BS 607	7/8	3/16	1/2		2,1/2	8	Out of stock
535A BS 707 Woodruff Cutter £100.58 - 17 in stock	BS 707	7/8	7/32	1/2		2,1/2	8
535A BS 807 Woodruff Cutter £83.17 - Out of stock	BS 807	7/8	1/4	1/2		2,1/2	8	Out of stock
535A BS 608 Woodruff Cutter £92.84 - Out of stock	BS 608	1"	3/16	1/2		2,3/4	8	Out of stock
535A BS 708 Woodruff Cutter £102.52 - 13 in stock	BS 708	1"	7/32	1/2		2,3/4	8
535A BS 808 Woodruff Cutter £85.11 - Out of stock	BS 808	1"	1/4	1/2		2,3/4	8	Out of stock
535A BS 1008 Woodruff Cutter £83.17 - 11 in stock	BS 1008	1"	5/16	1/2		2,3/4	8
535A BS 609 Woodruff Cutter £96.71 - Out of stock	BS 609	1,1/8	3/16	1/2		2,3/4	8	Out of stock
535A BS 709 Woodruff Cutter £135.40 - 11 in stock	BS 709	1,1/8	7/32	1/2		2,3/4	8
535A BS 809 Woodruff Cutter £108.33 - Out of stock	BS 809	1,1/8	1/4	1/2		2,3/4	8	Out of stock
535A BS 1009 Woodruff Cutter £100.58 - 39 in stock	BS 1009	1,1/8	5/16	1/2		2,3/4	8
535A BS 610 Woodruff Cutter £96.71 - 12 in stock	BS 610	1,1/4	3/16	1/2		2,3/4	10
535A BS 710 Woodruff Cutter £112.19 - 2 in stock	BS 710	1,1/4	7/32	1/2		2,3/4	10
535A BS 810 Woodruff Cutter £100.58 - Out of stock	BS 810	1,1/4	1/4	1/2		2,3/4	10	Out of stock
535A BS 1010 Woodruff Cutter £102.52 - 3 in stock	BS 1010	1,1/4	5/16	1/2		2,3/4	10
535A BS 1210 Woodruff Cutter £102.51 - 4 in stock	BS 1210	1,1/4	3/8	1/2		2,3/4	10
535A BS 811 Woodruff Cutter £116.06 - 5 in stock	BS 811	1,3/8	1/4	1/2		3	10
535A BS 1011 Woodruff Cutter £135.40 - Out of stock	BS 1011	1,3/8	5/16	1/2		3	10	Out of stock
535A BS 1211 Woodruff Cutter £125.73 - 5 in stock	BS 1211	1,3/8	3/8	1/2		3	10
535A BS 812 Woodruff Cutter £114.13 - 3 in stock	BS 812	1,1/2	1/4	1/2		3	10
535A BS 1012 Woodruff Cutter £110.25 - 5 in stock	BS 1012	1,1/2	5/16	1/2		3	10
535A BS 1212 Woodruff Cutter £121.86 - Out of stock	BS 1212	1,1/2	3/8	1/2		3	10	Out of stock
