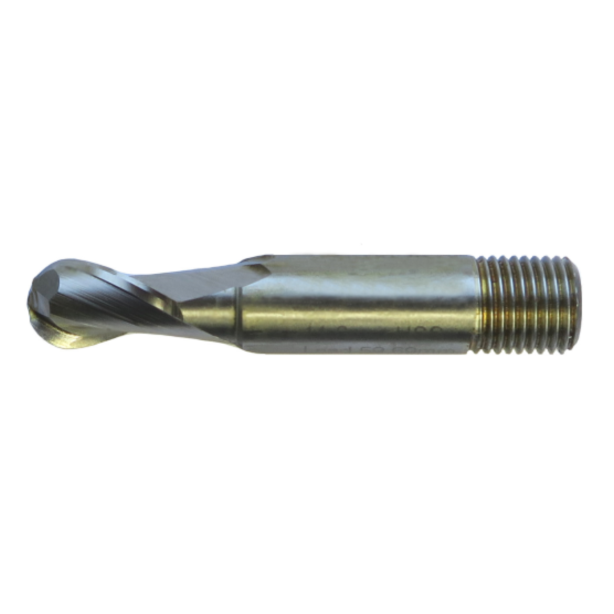

526A Ball Nose Slot Drills

In stock

SKU

526A

Parallel shank with thread*                                 M2 High Speed Steel                                  BSS122 Part 4
Threaded shank                                                  30° Right hand spiral                                  Right hand cutting
Shank tolerance h8                                             20TPI Whit Form Thread                            Teeth end cutting to centre

*shanks are designed to fit plain collets, as thread crests are below shank diameter, as well as Clarkson and
similar threaded collets. A metric standard, DIN1835 Type D, has been used to describe the shanks.

Grouped product items
Product Name	Diameter	Radius	Shank Diam	Cutting Length	Total Length	Qty
526A 2.00mm B/N Slot Drill £18.96 - 6 in stock	2.00mm	1	6	3	49
526A 2.50mm B/N Slot Drill £18.37 - 39 in stock	2.50mm	1.25	6	4.5	51
526A 3.00mm B/N Slot Drill £18.37 - 6 in stock	3.00mm	1.5	6	7	51
526A 4.00mm B/N Slot Drill £18.37 - Out of stock	4.00mm	2	6	9.5	52.5	Out of stock
526A 5.00mm B/N Slot Drill £18.37 - 13 in stock	5.00mm	2.5	6	9.5	52.5
526A 6.00mm B/N Slot Drill £18.37 - 19 in stock	6.00mm	3	6	11	56.5
526A 7.00mm B/N Slot Drill £25.33 - 2 in stock	7.00mm	3.5	10	11	58.5
526A 8.00mm B/N Slot Drill £25.33 - 63 in stock	8.00mm	4	10	12.5	59.5
526A 9.00mm B/N Slot Drill £25.54 - 16 in stock	9.00mm	4.5	10	14.5	60.5
526A 10.00mm B/N Slot Drill £29.59 - 18 in stock	10.00mm	5	10	14.5	60.5
526A 11.00mm B/N Slot Drill £39.66 - 4 in stock	11.00mm	5.5	12	17.5	65
526A 12.00mm B/N Slot Drill £34.83 - Out of stock	12.00mm	6	12	19	66.5	Out of stock
526A 13.00mm B/N Slot Drill £48.36 - Out of stock	13.00mm	6.5	12	19	66.5	Out of stock
526A 14.00mm B/N Slot Drill £48.36 - 8 in stock	14.00mm	7	12	22	68.5
526A 15.00mm B/N Slot Drill £56.10 - Out of stock	15.00mm	7.5	16	22	72	Out of stock
526A 16.00mm B/N Slot Drill £52.24 - 4 in stock	16.00mm	8	16	22	72
526A 17.00mm B/N Slot Drill £58.03 - 2 in stock	16.00mm	8	16	22	72
526A 18.00mm B/N Slot Drill £62.87 - Out of stock	18.00mm	9	16	24	74	Out of stock
526A 19.00mm B/N Slot Drill £62.87 - 22 in stock	19.00mm	9.5	16	25.5	77
526A 20.00mm B/N Slot Drill £62.87 - 9 in stock	20.00mm	10	25	25.5	77
526A 22.00mm B/N Slot Drill £98.66 - Out of stock	22.00mm	11	25	25.5	100	Out of stock
526A 24.00mm B/N Slot Drill £106.38 - Out of stock	24.00mm	12	25	25.5	103	Out of stock
526A 25.00mm B/N Slot Drill £96.71 - 2 in stock	25.00mm	12.5	25	27	95
526A 26.00mm B/N Slot Drill £110.25 - 9 in stock	26.00mm	13	25	27	95
526A 28.00mm B/N Slot Drill £110.25 - 5 in stock	28.00mm	14	25	30	95
526A 30.00mm B/N Slot Drill £116.06 - 4 in stock	30.00mm	15	25	30	93.5
526A 32.00mm B/N Slot Drill £137.32 - 6 in stock	32.00mm	16	25	36.5	100
526A 40.00 x 25 B/N Slot Drill - POA £0.00 - Out of stock	40.00mm	20	25	48	113	Out of stock
526A 50.00 x 32 B/N Slot Drill - POA £0.00 - Out of stock	50.00mm	25	32	56	122	Out of stock
526A 1/16 B/N Slot Drill £18.95 - 6 in stock	1/16	1/32	1/4	3/32	1,29/32
526A 3/32 B/N Slot Drill - POA £0.00 - Out of stock	3/32	3/64	1/4	3/16	2	Out of stock
526A 1/8 B/N Slot Drill £18.18 - 25 in stock	1/8	1/16	1/4	9/32	2
526A 5/32 B/N Slot Drill £19.73 - 2 in stock	5/32	5/64	1/4	3/8	2,1/16
526A 3/16 B/N Slot Drill £18.18 - 4 in stock	3/16	3/32	1/4	3/8	2,1/16
526A 7/32 B/N Slot Drill - POA £0.00 - Out of stock	7/32	7/64	1/4	7/16	2,3/16	Out of stock
526A 1/4 B/N Slot Drill £18.18 - Out of stock	1/4	1/8	1/4	7/16	2,7/32	Out of stock
526A 9/32 B/N Slot Drill £25.54 - 4 in stock	9/32	9/64	3/8	9/16	2,3/8
526A 5/16 B/N Slot Drill £24.18 - 15 in stock	5/16	5/16	3/8	1/2	2,11/32
526A 11/32 B/N Slot Drill - POA £0.00 - Out of stock	11/32	11/64	3/8	9/16	2,3/8	Out of stock
526A 3/8 B/N Slot Drill £26.31 - 40 in stock	3/8	3/16	3/8	9/16	2,3/8
526A 13/32 B/N Slot Drill £41.58 - 8 in stock	13/32	13/64	3/8	5/8	2,3/8
526A 7/16 B/N Slot Drill £37.53 - Out of stock	7/16	7/32	1/2	11/16	2,9/16	Out of stock
526A 1/2 B/N Slot Drill £34.29 - Out of stock	1/2	1/2	1/2	3/4	2,5/8	Out of stock
526A 9/16 B/N Slot Drill £46.43 - Out of stock	9/16	9/32	1/2	27/32	2,23/32	Out of stock
526A 5/8 B/N Slot Drill £47.40 - 2 in stock	5/8	5/16	5/8	7/8	2,27/32
526A 11/16 B/N Slot Drill £57.07 - Out of stock	11/16	11/32	5/8	15/16	2,29/32	Out of stock
526A 3/4 B/N Slot Drill £57.07 - 17 in stock	3/4	3/8	5/8	1	3,1/32
526A 7/8 B/N Slot Drill £96.71 - 5 in stock	7/8	7/16	1	1	3,15/16
526A 1" B/N Slot Drill £90.92 - 3 in stock	1"	1	1	1,1/16	3,3/4
526A 1.1/8 B/N Slot Drill £116.06 - 2 in stock	1,1/8	9/16	1	1,3/16	3,3/4
526A 1.1/4 x 1 B/N Slot Drill £177.96 - 2 in stock	1,1/4	5/8	1	1,7/16	3,15/16
526A 1.1/4 x 1.1/4 B/N Slot Drill - POA £0.00 - Out of stock	1,1/4	5/8	1,1/4	1,3/8	4,5/8	Out of stock
526A 1.3/8 x 1 B/N Slot Drill £193.44 - 3 in stock	1,3/8		1	1,9/16	4,1/16
526A 1.1/2 x 1 B/N Slot Drill - POA £0.00 - Out of stock	1,1/2	3/4	1	1,11/16	4,3/16	Out of stock
526A 1.1/2 x 1.1/4 B/N Slot Drill - POA £0.00 - Out of stock	1,1/2	3/4	1,1/4	1,11/16	4,1/2	Out of stock
526A 2" B/N Slot Drill £752.44 - Out of stock	-	-	-	-	-	Out of stock

Details

Intermediate sizes may be provided to special order, the quantity ordered determining the unit price.
