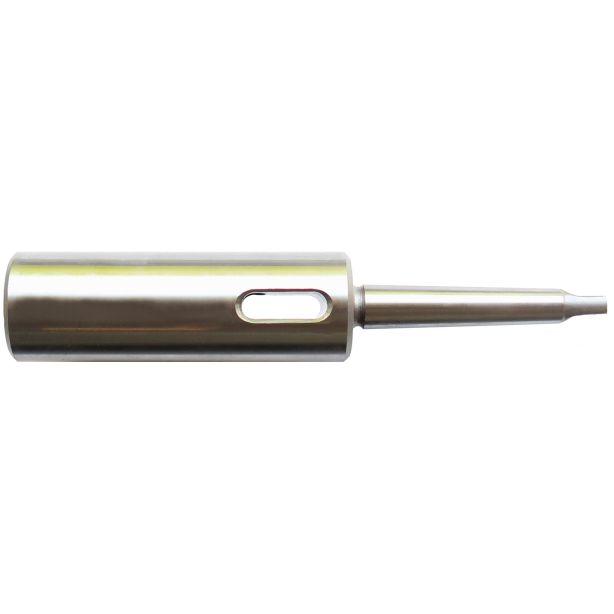

A8 & A9 MTS Extension Sockets

In stock

SKU

A8-9

A8xx Oil toughened sockets are externally precision ground only and are tang hardened.

A9xx Extension sockets are fully hardened and ground both internally and externally.

Extension sockets for adapting drill shanks to larger or smaller morse taper drilling spindles tool end of socket will suit all
tool shanks according to DIN228 with tang, and BS1660. Equipped with two drift holes for access of ejecting drift. When
using sockets to increase the capacity of the drilling spindle, it is important to be sure that the power of the machine will
be sufficient to drive the larger tool and assembly.

Grouped product items
Product Name	Morse Taper Number - Inside (Tool)	Morse Taper Number - Outside (Machine)	Large Diameter	Socket Length	Overall Length	Qty
A811 1 In - 1 Out Oil Toughened Ext. Socket £40.34 - Out of stock	1	1	20	76	145	Out of stock
A812 2 In - 1 Out Oil Toughened Ext. Socket £46.10 - Out of stock	2	1	30	91	160	Out of stock
A821 1 In - 2 Out Oil Toughened Ext. Socket £44.19 - Out of stock	1	2	20	76	160	Out of stock
A822 2 In - 2 Out Oil Toughened Ext. Socket £48.03 - Out of stock	2	2	30	91	175	Out of stock
A823 3 In - 2 Out Oil Toughened Ext. Socket £48.03 - Out of stock	3	2	36	112	196	Out of stock
A831 1 In - 3 Out Oil Toughened Ext. Socket £48.03 - Out of stock	1	3	20	76	175	Out of stock
A832 2 In - 3 Out Oil Toughened Ext. Socket £53.80 - 2 in stock	2	3	30	91	194
A833 3 In - 3 Out Oil Toughened Ext. Socket £57.63 - Out of stock	3	3	36	112	215	Out of stock
A834 4 In - 3 Out Oil Toughened Ext. Socket £65.32 - 1 in stock	4	3	48	137	240
A841 1 In - 4 Out Oil Toughened Ext. Socket £67.23 - Out of stock	1	4	20	76	200	Out of stock
A842 2 In - 4 Out Oil Toughened Ext. Socket £67.24 - 2 in stock	2	4	30	91	215
A843 3 In - 4 Out Oil Toughened Ext. Socket £63.40 - 1 in stock	3	4	36	112	240
A844 4 In - 4 Out Oil Toughened Ext. Socket £73.00 - Out of stock	4	4	48	137	265	Out of stock
A845 5 In - 4 Out Oil Toughened Ext. Socket £94.13 - 1 in stock	5	4	63	172	300
A851 1 In - 5 Out Oil Toughened Ext. Socket £169.05 - Out of stock	1	5	-	4	10,1/4	Out of stock
A852 2 In - 5 Out Oil Toughened Ext. Socket £192.12 - Out of stock	2	5	30	91	247	Out of stock
A853 3 In - 5 Out Oil Toughened Ext. Socket £107.59 - Out of stock	3	5	36	112	268	Out of stock
A854 4 In - 5 Out Oil Toughened Ext. Socket £101.82 - Out of stock	4	5	48	137	300	Out of stock
A855 5 In - 5 Out Oil Toughened Ext. Socket £124.86 - Out of stock	5	5	63	172	335	Out of stock
A911 1 In - 1 Out Hardened & Ground Ext. Socket £69.16 - 1 in stock	1	1	20	76	145
A912 2 In - 1 Out Hardened & Ground Ext. Socket £78.76 - 2 in stock	2	1	30	91	160
A921 1 In - 2 Out Hardened & Ground Ext. Socket £78.76 - 2 in stock	1	2	20	76	160
A922 2 In - 2 Out Hardened & Ground Ext. Socket £82.61 - 2 in stock	2	2	30	91	175
A923 3 In - 2 Out Hardened & Ground Ext. Socket £86.44 - 1 in stock	3	2	36	112	196
A931 1 In - 3 Out Hardened & Ground Ext. Socket £92.21 - Out of stock	1	3	20	76	175	Out of stock
A932 2 In - 3 Out Hardened & Ground Ext. Socket £92.21 - 2 in stock	2	3	30	91	194
A933 3 In - 3 Out Hardened & Ground Ext. Socket £99.90 - 1 in stock	3	3	36	112	215
A934 4 In - 3 Out Hardened & Ground Ext. Socket £121.02 - 2 in stock	4	3	48	137	240
A941 1 In - 4 Out Hardened & Ground Ext. Socket £124.86 - Out of stock	1	4	20	76	200	Out of stock
A942 2 In - 4 Out Hardened & Ground Ext. Socket £113.34 - Out of stock	2	4	30	91	215	Out of stock
A943 3 In - 4 Out Hardened & Ground Ext. Socket £111.43 - 3 in stock	3	4	36	112	240
A944 4 In - 4 Out Hardened & Ground Ext. Socket £128.72 - 1 in stock	4	4	48	137	265
A945 5 In - 4 Out Hardened & Ground Ext. Socket £165.21 - 1 in stock	5	4	63	172	300
A953 3 In - 5 Out Hardened & Ground Ext. Socket £184.43 - 1 in stock	3	5	36	112	268
A954 4 In - 5 Out Hardened & Ground Ext. Socket £167.13 - 1 in stock	4	5	48	137	300
A955 5 In - 5 Out Hardened & Ground Ext. Socket £205.56 - 1 in stock	5	5	63	172	335
A965 5 In - 6 Out Hardened & Ground Ext. Socket £605.14 - 1 in stock	5	6	63	172	390

Details

A range of extension sockets with oil channels suitable for use with coolbor oilfeed twist drills are
described in the coolbor section of the catalogue.
