A6 & A7 Reducing MTS Sleeves

In stock

SKU

A6-7

A6xx Oil toughened sleeves are externally precision ground only and are tang hardened.

A7xx Sleeves are fully hardened and ground both internally and externally.

Morse taper shank sleeves for adapting drill shanks to larger morse taper drilling spindles tool socket end of sleeve will suit
all tool shanks according to DIN228 with tang, and BS1660. Equipped with two drift holes for access of ejecting drift. Use of
these sleeves will involve a small overhang beyond the spindle datum.

Grouped product items
Product Name	Morse Taper Number - Inside (Tool)	Morse Taper Number - Outside (Machine)	Large Diameter	Length	Over-hang	Qty
A610 0 In - 1 Out Oil Toughened Sleeve £14.98 - Out of stock	0	1	13.0	80	19	Out of stock
A621 1 In - 2 Out Oil Toughened Sleeve £14.41 - 2 in stock	1	2	18.6	92	17
A631 1 In - 3 Out Oil Toughened Sleeve £16.52 - 8 in stock	1	3	24.1	99	5
A632 2 In - 3 Out Oil Toughened Sleeve £16.52 - Out of stock	2	3	24.7	112	18	Out of stock
A641 1 In - 4 Out Oil Toughened Sleeve £30.73 - 3 in stock	1	4	31.6	124	7
A642 2 In - 4 Out Oil Toughened Sleeve £28.81 - 5 in stock	2	4	31.6	124	7
A643 3 In - 4 Out Oil Toughened Sleeve £28.81 - 25 in stock	3	4	32.4	140	23
A652 2 In - 5 Out Oil Toughened Sleeve £71.09 - 1 in stock	2	5	44.7	156	7
A653 3 In - 5 Out Oil Toughened Sleeve £67.24 - 1 in stock	3	5	44.7	156	7
A654 4 In - 5 Out Oil Toughened Sleeve £67.23 - 2 in stock	4	5	45.5	171	22
A665 5 In - 6 Out Oil Toughened Sleeve £184.43 - 1 in stock	5	6	63.8	218	8
A710 0 In - 1 Out Hardened & Ground Sleeve £23.44 - 2 in stock	0	1	13.0	80	19
A721 1 In - 2 Out Hardened & Ground Sleeve £23.44 - Out of stock	1	2	18.6	92	17	Out of stock
A731 1 In - 3 Out Hardened & Ground Sleeve £27.09 - 3 in stock	1	3	24.1	99	5

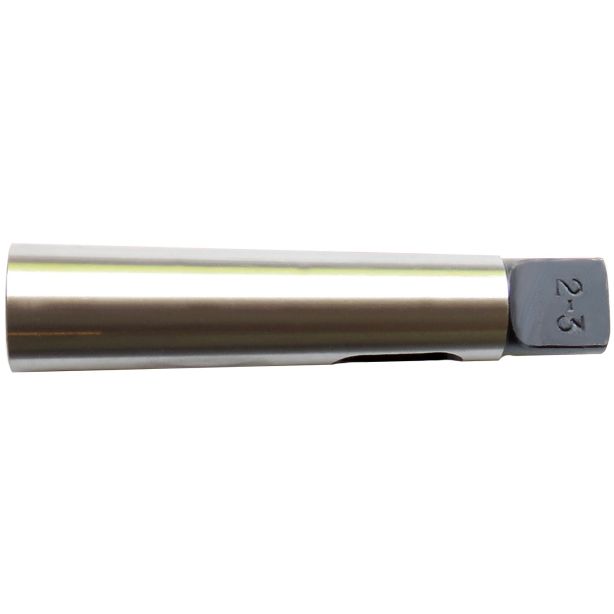

A732 2 In - 3 Out Hardened & Ground Sleeve £26.51 - Out of stock	2	3	24.7	112	18	Out of stock
A741 1 In - 4 Out Hardened & Ground Sleeve £44.19 - 5 in stock	1	4	31.6	124	7
A742 2 In - 4 Out Hardened & Ground Sleeve £44.19 - 2 in stock	2	4	31.6	124	7
A743 3 In - 4 Out Hardened & Ground Sleeve £44.19 - 14 in stock	3	4	32.4	140	23
A751 1 In - 5 Out Hardened & Ground Sleeve £105.66 - 1 in stock	1	5	44.7	156	7
A752 2 In - 5 Out Hardened & Ground Sleeve £105.66 - 1 in stock	2	5	44.7	156	7
A753 3 In - 5 Out Hardened & Ground Sleeve £105.66 - 1 in stock	3	5	44.7	156	7
A754 4 In - 5 Out Hardened & Ground Sleeve £105.66 - 1 in stock	4	5	45.5	171	22
A764 4 In - 6 Out Hardened & Ground Sleeve £345.80 - 1 in stock	4	6	63.8	218	8

Details

A range of morse taper sleeves with oil channels suitable for use with coolbor oilfeed twist drills are
described in the coolbor section of the catalogue
