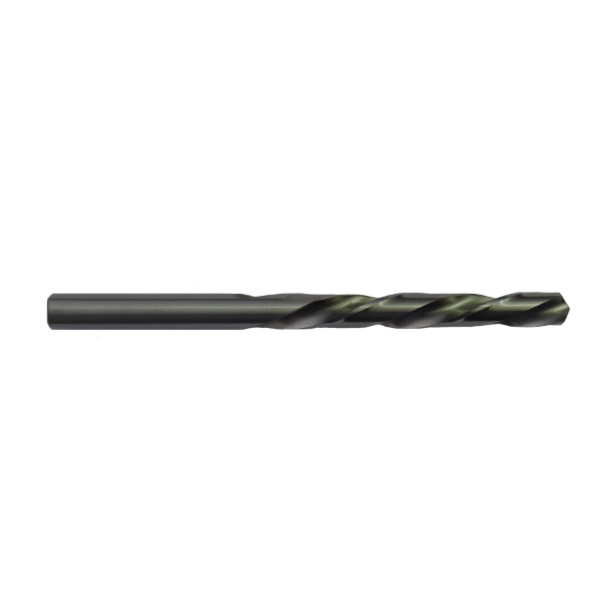

160A Left Hand Jobber Drills

In stock

SKU

160A

Parallel shank ISO length                                         M2 High Speed Steel                                   BS328/1 DIN338LN
Engineer’s high quality                                             118° point, h8 diameter tolerance                 Left Hand Cutting
Supplied in standard steam oxide (“blue”) finish - smaller sizes may be supplied bright ground.

Made to the same dimensions as No.150A drills, these tools are designed for use in left hand drilling spindles.
Although the number of machines requiring left hand tools is today much decreased, compared with the heyday of
auto turned/drilled part shops, it is intended to keep stock of No. 160A drills in as wide a range as possible for as
long as is practical: however, lengthening deliveries may be anticipated when stock is not available

Grouped product items
Product Name	Diameter	Flute Length	Overall Length	Qty
160A 0.50mm L/H Drill £9.04 - 26 in stock	0.50mm	6	22
160A 0.65mm L/H Drill £8.45 - 9 in stock	0.65mm	8	26
160A 0.80mm L/H Drill £7.12 - 30 in stock	0.80mm	10	30
160A 0.82mm L/H Drill £10.57 - 29 in stock	0.82mm	10	30
160A 0.85mm L/H Drill £7.50 - 20 in stock	0.85mm	10	30
160A 0.90mm L/H Drill £7.12 - 35 in stock	0.90mm	11	32
160A 0.95mm L/H Drill £7.12 - 29 in stock	0.95mm	11	32
160A 1.00mm L/H Drill £6.34 - 85 in stock	1.00mm	12	34
160A 1.10mm L/H Drill £5.95 - 136 in stock	1.10mm	14	36
160A 1.15mm L/H Drill £7.69 - 19 in stock	1.15mm	14	36
160A 1.20mm L/H Drill £5.58 - 72 in stock	1.20mm	16	38
160A 1.25mm L/H Drill £8.07 - 38 in stock	1.25mm	16	38
160A 1.30mm L/H Drill £5.37 - 626 in stock	1.30mm	16	38
160A 1.40mm L/H Drill £4.99 - 151 in stock	1.40mm	18	40
160A 1.50mm L/H Drill £4.99 - 54 in stock	1.50mm	18	40
160A 1.60mm L/H Drill £4.81 - 163 in stock	1.60mm	20	43
160A 1.65mm L/H Drill £6.34 - 10 in stock	1.65mm	20	43
160A 1.70mm L/H Drill £4.61 - 634 in stock	1.70mm	20	43
160A 1.75mm L/H Drill £4.81 - 54 in stock	1.75mm	22	46
160A 1.80mm L/H Drill £4.42 - 54 in stock	1.80mm	22	46
160A 1.85mm L/H Drill £5.78 - 126 in stock	1.85mm	22	46
160A 1.90mm L/H Drill £4.42 - 43 in stock	1.90mm	22	46
160A 1.95mm L/H Drill £5.78 - 2 in stock	1.95mm	24	49
160A 2.00mm L/H Drill £3.47 - Out of stock	2.00mm	24	49	Out of stock
160A 2.05mm L/H Drill £4.99 - 57 in stock	2.05mm	24	49
160A 2.10mm L/H Drill £4.99 - 91 in stock	2.10mm	24	49
160A 2.15mm L/H Drill £5.78 - 16 in stock	2.15mm	27	53
160A 2.20mm L/H Drill £4.99 - 206 in stock	2.20mm	27	53
160A 2.25mm L/H Drill £5.78 - 35 in stock	2.25mm	27	53
160A 2.30mm L/H Drill £4.99 - 45 in stock	2.30mm	27	53
160A 2.40mm L/H Drill £4.99 - 1050 in stock	2.40mm	30	57
160A 2.50mm L/H Drill £3.27 - 34 in stock	2.50mm	30	57
160A 2.55mm L/H Drill £6.15 - 5 in stock	2.55mm	30	57
160A 2.60mm L/H Drill £4.99 - 238 in stock	2.60mm	30	57
160A 2.65mm L/H Drill £6.53 - 2 in stock	2.65mm	30	57
160A 2.70mm L/H Drill £5.18 - 222 in stock	2.70mm	33	61
160A 2.75mm L/H Drill £5.78 - 59 in stock	2.75mm	33	61
160A 2.80mm L/H Drill £5.18 - 19 in stock	2.80mm	33	61
160A 2.85mm L/H Drill £6.72 - 14 in stock	2.85mm	33	61
160A 2.90mm L/H Drill £5.18 - 168 in stock	2.90mm	33	61
160A 2.95mm L/H Drill £6.91 - 17 in stock	2.95mm	33	61
160A 3.00mm L/H Drill £3.55 - 90 in stock	3.00mm	33	61
160A 3.10mm L/H Drill £5.37 - 18 in stock	3.10mm	36	65
160A 3.20mm L/H Drill £5.37 - 50 in stock	3.20mm	36	65
160A 3.25mm L/H Drill £7.12 - 176 in stock	3.25mm	36	65
160A 3.30mm L/H Drill £5.58 - 45 in stock	3.30mm	36	65
160A 3.40mm L/H Drill £5.58 - 14 in stock	3.40mm	39	70
160A 3.50mm L/H Drill £4.04 - 201 in stock	3.50mm	39	70
160A 3.60mm L/H Drill £5.58 - 92 in stock	3.60mm	39	70
160A 3.70mm L/H Drill £5.78 - 10 in stock	3.70mm	39	70
160A 3.75mm L/H Drill £7.88 - 17 in stock	3.75mm	39	70
160A 3.80mm L/H Drill £6.15 - 208 in stock	3.80mm	43	75
160A 3.90mm L/H Drill £6.15 - 167 in stock	3.90mm	43	75
160A 4.00mm L/H Drill £4.24 - 30 in stock	4.00mm	43	75
160A 4.05mm L/H Drill £9.99 - 8 in stock	4.05mm	43	75
160A 4.10mm L/H Drill £6.53 - 499 in stock	4.10mm	43	75
160A 4.20mm L/H Drill £6.72 - 493 in stock	4.20mm	43	75
160A 4.25mm L/H Drill £9.80 - 40 in stock	4.25mm	43	75
160A 4.30mm L/H Drill £9.80 - 62 in stock	4.30mm	47	80
160A 4.40mm L/H Drill £9.80 - 36 in stock	4.40mm	47	80
160A 4.50mm L/H Drill £7.30 - 84 in stock	4.50mm	47	80
160A 4.60mm L/H Drill £10.18 - 31 in stock	4.60mm	47	80
160A 4.70mm L/H Drill £10.57 - 62 in stock	4.70mm	47	80
160A 4.75mm L/H Drill £11.52 - 20 in stock	4.75mm	47	80
160A 4.80mm L/H Drill £7.88 - 161 in stock	4.80mm	52	86
160A 4.90mm L/H Drill £7.88 - 158 in stock	4.90mm	52	86
160A 5.00mm L/H Drill £5.58 - 889 in stock	5.00mm	52	86
160A 5.10mm L/H Drill £8.45 - 14 in stock	5.10mm	52	86
160A 5.20mm L/H Drill £8.84 - 45 in stock	5.20mm	52	86
160A 5.25mm L/H Drill £11.52 - 10 in stock	5.25mm	52	86
160A 5.30mm L/H Drill £8.84 - 219 in stock	5.30mm	52	86
160A 5.40mm L/H Drill £9.04 - 28 in stock	5.40mm	57	93
160A 5.50mm L/H Drill £9.42 - 58 in stock	5.50mm	57	93
160A 5.60mm L/H Drill £12.49 - 40 in stock	5.60mm	57	93
160A 5.70mm L/H Drill £12.68 - 10 in stock	5.70mm	57	93
160A 5.75mm L/H Drill £13.26 - 10 in stock	5.75mm	57	93
160A 5.80mm L/H Drill £13.82 - 64 in stock	5.80mm	57	93
160A 5.90mm L/H Drill £14.22 - 102 in stock	5.90mm	57	93
160A 6.00mm L/H Drill £7.30 - 32 in stock	6.00mm	57	93
160A 6.10mm L/H Drill £15.17 - 113 in stock	6.10mm	63	101
160A 6.20mm L/H Drill £15.17 - 68 in stock	6.20mm	63	101
160A 6.25mm L/H Drill £16.32 - 9 in stock	6.25mm	63	101
160A 6.30mm L/H Drill £15.75 - 40 in stock	6.30mm	63	101
160A 6.40mm L/H Drill £15.95 - 32 in stock	6.40mm	63	101
160A 6.50mm L/H Drill £12.30 - 20 in stock	6.50mm	63	101
160A 6.60mm L/H Drill £16.14 - 18 in stock	6.60mm	63	101
160A 6.70mm L/H Drill £16.52 - 18 in stock	6.70mm	63	101
160A 6.80mm L/H Drill £16.92 - 13 in stock	6.80mm	69	109
160A 6.90mm L/H Drill £17.29 - 59 in stock	6.90mm	69	109
160A 7.00mm L/H Drill £9.42 - 12 in stock	7.00mm	69	109
160A 7.10mm L/H Drill £18.63 - 15 in stock	7.10mm	69	109
160A 7.20mm L/H Drill £19.39 - 23 in stock	7.20mm	69	109
160A 7.30mm L/H Drill £19.59 - 22 in stock	7.30mm	69	109
160A 7.40mm L/H Drill £20.17 - 22 in stock	7.40mm	69	109
160A 7.50mm L/H Drill £16.14 - 51 in stock	7.50mm	69	109
160A 7.60mm L/H Drill £21.13 - 20 in stock	7.60mm	75	117
160A 7.70mm L/H Drill £22.10 - 29 in stock	7.70mm	75	117
160A 7.80mm L/H Drill £22.47 - 10 in stock	7.80mm	75	117
160A 7.90mm L/H Drill £22.86 - 24 in stock	7.90mm	75	117
160A 8.00mm L/H Drill £12.11 - 33 in stock	8.00mm	75	117
160A 8.10mm L/H Drill £24.02 - 31 in stock	8.10mm	75	117
160A 8.20mm L/H Drill £24.78 - 42 in stock	8.20mm	75	117
160A 8.40mm L/H Drill £25.93 - 97 in stock	8.40mm	75	117
160A 8.50mm L/H Drill £20.56 - 11 in stock	8.50mm	75	117
160A 8.60mm L/H Drill £26.32 - 10 in stock	8.60mm	81	125
160A 8.70mm L/H Drill £27.47 - 14 in stock	8.70mm	81	125
160A 8.80mm L/H Drill £28.63 - 7 in stock	8.80mm	81	125
160A 8.90mm L/H Drill £29.19 - 4 in stock	8.90mm	81	125
160A 9.00mm L/H Drill £15.38 - 1 in stock	9.00mm	81	125
160A 9.10mm L/H Drill £30.54 - 4 in stock	9.10mm	81	125
160A 9.20mm L/H Drill £31.32 - 15 in stock	9.20mm	81	125
160A 9.30mm L/H Drill £32.27 - 8 in stock	9.20mm	81	125
160A 9.40mm L/H Drill £32.66 - 27 in stock	9.40mm	81	125
160A 9.50mm L/H Drill £25.93 - 54 in stock	9.50mm	81	125
160A 9.60mm L/H Drill £34.58 - 5 in stock	9.60mm	87	133
160A 9.70mm L/H Drill £35.34 - 22 in stock	9.70mm	87	133
160A 9.80mm L/H Drill £36.10 - 5 in stock	9.80mm	87	133
160A 9.90mm L/H Drill £36.88 - 7 in stock	9.90mm	87	133
160A 10.00mm L/H Drill £19.22 - 20 in stock	10.00mm	87	133
160A 10.10mm L/H Drill £37.46 - 6 in stock	10.10mm	87	133
160A 10.20mm L/H Drill £38.04 - 6 in stock	10.20mm	87	133
160A 10.25mm L/H Drill £40.34 - 3 in stock	10.25mm	87	133
160A 10.40mm L/H Drill £39.78 - 27 in stock	10.40mm	87	133
160A 10.50mm L/H Drill £32.27 - 6 in stock	10.50mm	87	133
160A 10.80mm L/H Drill £43.03 - 12 in stock	10.80mm	94	142
160A 11.00mm L/H Drill £24.20 - 6 in stock	11.00mm	94	142
160A 11.40mm L/H Drill £48.03 - 2 in stock	11.40mm	94	142
160A 11.50mm L/H Drill £51.87 - 29 in stock	11.50mm	94	142
160A 11.60mm L/H Drill £51.87 - 5 in stock	11.60mm	94	142
160A 11.80mm L/H Drill £53.80 - 1 in stock	11.80mm	94	142
160A 12.00mm L/H Drill £29.78 - 2 in stock	12.00mm	101	151
160A 12.50mm L/H Drill £63.39 - 22 in stock	12.50mm	101	151
160A 12.70mm L/H Drill £34.20 - 1 in stock	12.70mm	101	151
160A 13.00mm L/H Drill £36.31 - 19 in stock	13.00mm	101	151
160A 15.50mm L/H Drill £69.16 - 51 in stock	15.50mm	120	178
160A 1/32 L/H Drill £7.69 - 68 in stock	1/32	13/32	1,3/16
160A 3/64 L/H Drill £6.34 - 36 in stock	3/64	5/8	1,1/2
160A 1/16 L/H Drill £3.07 - 71 in stock	1/16	25/32	1,11/16
160A 5/64 L/H Drill £4.24 - 9 in stock	5/64	15/16	1,15/16
160A 3/32 L/H Drill £3.27 - 277 in stock	3/32	1,3/16	2,1/4
160A 7/64 L/H Drill £4.99 - 810 in stock	7/64	1,5/16	2,13/32
160A 1/8 L/H Drill £3.64 - 52 in stock	1/8	1,7/16	2,9/16
160A 9/64 L/H Drill £4.99 - 129 in stock	9/64	1,17/32	2,3/4
160A 5/32 L/H Drill £4.22 - 729 in stock	5/32	1,11/16	2,15/16
160A 11/64 L/H Drill £9.80 - 18 in stock	11/64	1,27/32	3,5/32
160A 3/16 L/H Drill £5.18 - 272 in stock	3/16	2,1/16	3,3/8
160A 13/64 L/H Drill £8.64 - 42 in stock	13/64	2,1/16	3,3/8
160A 7/32 L/H Drill £6.34 - 175 in stock	7/32	2,1/4	3,21/32
160A 15/64 L/H Drill £14.41 - 11 in stock	15/64	2,1/4	3,21/32
160A 1/4 L/H Drill £7.88 - 34 in stock	1/4	2,1/2	3,31/32
160A 17/64 L/H Drill £16.92 - 21 in stock	17/64	2,23/32	4,9/32
160A 9/32 L/H Drill £18.25 - 43 in stock	9/32	2,23/32	4,9/32
160A 19/64 L/H Drill £21.13 - 10 in stock	19/64	2,15/16	4,19/32
160A 5/16 L/H Drill £11.90 - 30 in stock	5/16	2,15/16	4,19/32
160A 21/64 L/H Drill £25.55 - 19 in stock	21/64	2,15/16	4,19/32
160A 11/32 L/H Drill £27.85 - 24 in stock	11/32	3,3/16	4,29/32
160A 23/64 L/H Drill £30.73 - 14 in stock	23/64	3,3/16	4,29/32
160A 3/8 L/H Drill £17.29 - 60 in stock	3/8	3,7/16	5,1/4
160A 25/64 L/H Drill £36.88 - 7 in stock	25/64	3,7/16	5,1/4
160A 13/32 L/H Drill £31.32 - 25 in stock	13/32	3,7/16	5,1/4
160A 27/64 L/H Drill £42.64 - 6 in stock	27/64	3,11/16	5,19/32
160A 7/16 L/H Drill £24.78 - 1 in stock	7/16	3,11/16	5,19/32
160A 29/64 L/H Drill £51.87 - 6 in stock	29/64	3,11/16	5,19/32
160A 15/32 L/H Drill £55.70 - 14 in stock	15/32	3,31/32	5,15/16
160A 31/64 L/H Drill £59.54 - 12 in stock	31/64	3,31/32	5,15/16
160A 1/2 L/H Drill £34.20 - 19 in stock	1/2	3,31/32	5,15/16
160A No.69 L/H Drill £7.88 - 20 in stock	No.69	11/32	1,1/8
160A No.58 L/H Drill £8.26 - 18 in stock	No.58	9/16	1,7/16
160A No.56 L/H Drill £8.07 - 3 in stock	No.56	5/8	1,1/2
160A No.52 L/H Drill £6.34 - 17 in stock	No.52	25/32	1,11/16
160A No.49 L/H Drill £6.53 - 3 in stock	No.49	7/8	1,13/16
160A No.45 L/H Drill £6.72 - 3 in stock	No.45	15/16	1,15/16
160A No.43 L/H Drill £6.72 - 12 in stock	No.43	1,1/16	2,3/32
160A No.34 L/H Drill £6.72 - 8 in stock	No.34	1,5/16	2,13/32
160A No.32 L/H Drill £6.91 - 3 in stock	No.32	1,5/16	2,13/32
160A No.29 L/H Drill £8.64 - 8 in stock	No.29	1,17/32	2,3/4
160A No.25 L/H Drill £9.60 - 3 in stock	No.25	1,11/16	2,15/16
160A No.24 L/H Drill £9.60 - 1 in stock	No.24	1,11/16	2,15/16
160A No.20 L/H Drill £9.80 - 20 in stock	No.20	1,11/16	2,15/16
160A No.17 L/H Drill £11.90 - 5 in stock	No.17	1,27/32	3,5/32
160A No.13 L/H Drill £11.52 - 35 in stock	No.13	1,27/32	3,5/32
160A No.10 L/H Drill £12.30 - 7 in stock	No.10	2,1/16	3,3/8
160A No.8 L/H Drill £12.68 - 21 in stock	No.8	2,1/16	3,3/8
160A No.5 L/H Drill £13.26 - 13 in stock	No.5	2,1/16	3,3/8
160A No.3 L/H Drill £13.82 - 2 in stock	No.3	2,1/4	3,21/32
160A No.2 L/H Drill £14.22 - 18 in stock	No.2	2,1/4	3,21/32
160A No.1 L/H Drill £15.38 - 24 in stock	No.1	2,1/4	3,21/32
160A Ltr.A L/H Drill £16.14 - 30 in stock	Ltr.A	2,1/4	3,21/32
160A Ltr.B L/H Drill £16.92 - 6 in stock	Ltr.B	2,1/2	3,31/32
160A Ltr.S L/H Drill £33.04 - 20 in stock	Ltr.S	3,3/16	4,29/32
160A Ltr.T L/H Drill £34.58 - 5 in stock	Ltr.T	3,3/16	4,29/32
160A Ltr.W L/H Drill £42.25 - 2 in stock	Ltr.W	3,7/16	5,1/4

Details

Wire Gauge (Number and Letter size) Left hand jobbers are being discontinued (though some stocks remain). They may still be supplied as
specials if manufacturing quantities warrant, but will be subject to special quotation prices.
