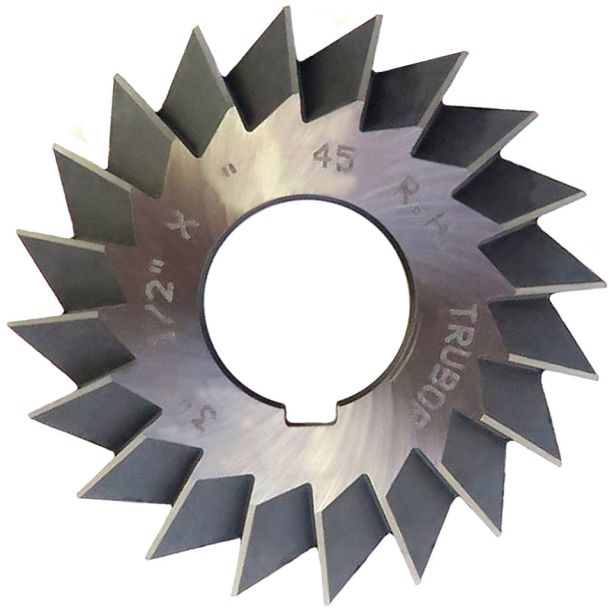

507A Single Angle Cutters

In stock
SKU
507A
M2 High Speed Steel                           Straight teeth radial to centre                             BSS 122 part 1 (1953) (Fractional)
Bores with standard keyway (BSS122 or DIN 138) DIN1823A (Metric)

Cutters for producing angled slots in ferrous and some non-ferrous materials. Cutting teeth are on the angled

face and the longer straight side. Suitable for making angled profiles including dovetails and bevels.
Most standard sizes are held in stock in both right and left hand, and include sizes frequently used
in the manufacture of processing equipment in the tea and sugar industries. Special angle cutters may be
quickly produced to customer specifications, including those used in proprietary pipe-cutting equipment and
many other specialist applications.

By convention, German and some other manufacturers will always make right hand cutters as a default

style, and therefore left handed angle cutters are more unusual in metric and little stock is held.

*The number of teeth shown is that used in normal practice in UK. Occasionally, tools with slightly different numbers of
teeth may be in stock and these will be provided when available
Grouped product items
Product Name Angle Diameter Width Bore Size Number Teeth Qty
507A 30RH 3 x 5/16 x 1 Single Angle
£105.66
-
4 in stock
30 3 5/16 1 20
507A 30LH 2.3/4 x 5/16 x 1 Single Angle
£103.46
-
3 in stock
30 2,3/4 5/16 1 18
507A 30LH 3 x 5/16 x 1.1/4 Single Angle
£105.66
-
6 in stock
30 3 5/16 1,1/4 20
507A 30LH 3.1/2 x 1/2 x 1 Single Angle
£151.90
-
1 in stock
30 3,1/2 1/2 1 20
507A 30LH 3.1/2 x 1/2 x 1.1/4 Single Angle
£151.89
-
5 in stock
30 3,1/2 1/2 1,1/4 20
507A 45RH 2.3/4 x 1/2 x 1 Single Angle
£103.46
-
2 in stock
45 2,3/4 1/2 1 18
507A 45RH 3 x 1/2 x 1 Single Angle
£123.27
-
18 in stock
45 3 1/2 1 20
507A 45RH 3 x 1/2 x 1.1/4 Single Angle
£123.27
-
10 in stock
45 3 1/2 1,1/4 20
507A 45RH 3 x 5/8 x 1.1/4 Single Angle
£134.28
-
1 in stock
45 3 5/8 1,1/4 20
507A 45RH 4 x 3/4 x 1 Single Angle
£226.73
-
Out of stock
45 4 3/4 1 20
Out of stock
507A 45LH 2.3/4 x 1/2 x 1 Single Angle
£103.46
-
3 in stock
45 2,3/4 1/2 1 18
507A 45LH 3 x 1/2 x 1 Single Angle
£123.27
-
3 in stock
45 3 1/2 1 20
507A 45LH 3 x 5/8 x 1 Single Angle
£134.28
-
15 in stock
45 3 5/8 1 20
507A 45LH 3 x 5/8 x 1.1/4 Single Angle
£134.28
-
6 in stock
45 3 5/8 1,1/4 20
507A 45LH 4 x 3/4 x 1 Single Angle
£226.73
-
5 in stock
45 4 3/4 1 22
507A 60RH 2.3/4 x 1/2 x 1 Single Angle
£103.46
-
5 in stock
60 2,3/4 1/2 1 18
507A 60RH 3 x 1/2 x 1 Single Angle
£123.27
-
12 in stock
60 3 1/2 1 20
507A 60RH 3 x 5/8 x 1 Single Angle
£134.28
-
2 in stock
60 3 5/8 1 20
507A 60RH 3 x 3/4 x 1 Single Angle
£143.09
-
2 in stock
60 3 3/4 1 20
507A 60RH 3 x 3/4 x 1.1/4 Single Angle
£143.09
-
3 in stock
60 3 3/4 1,1/4 20
507A 60RH 4 x 3/4 x 1 Single Angle
£226.73
-
4 in stock
60 4 3/4 1 22
507A 60LH 2.3/4 x 1/2 x 1 Single Angle
£103.46
-
2 in stock
60 2,3/4 1/2 1 18
507A 60LH 3 x 1/2 x 1 Single Angle
£123.27
-
4 in stock
60 3 1/2 1 20
507A 60LH 3 x 1/2 x 1.1/4 Single Angle
£123.27
-
5 in stock
60 3 1/2 1,1/4 20
507A 60LH 3 x 5/8 x 1 Single Angle
£134.28
-
1 in stock
60 3 5/8 1 20
507A 65RH 2.3/4 x 9/16 x 1.1/4 Single Angle
£127.67
-
1 in stock
65 2,3/4 9/16 1,1/4 18
507A 65RH 3 x 5/8 x 1.1/4 Single Angle
£134.28
-
2 in stock
65 3 5/8 1,1/4 20
507A 65RH 3.1/2 x 9/16 x 1.1/4 Single Angle
£156.29
-
11 in stock
65 3,1/2 9/16 1,1/4 20
507A 65LH 2.3/4 x 1/2 x 1 Single Angle
£103.46
-
10 in stock
65 2,3/4 1/2 1 18
507A 65LH 2.3/4 x 1/2 x 1.1/4 Single Angle
£103.46
-
8 in stock
65 2,3/4 1/2 1,1/4 18
507A 65LH 3 x 9/16 x 1.1/4 Single Angle
£134.28
-
8 in stock
65 3 9/16 1,1/4 20
507A 65LH 3 x 5/8 x 1.1/4 Single Angle
£134.28
-
3 in stock
65 3 5/8 1,1/4 20
507A 65LH 3.1/2 x 9/16 x 1.1/4 Single Angle
£156.29
-
2 in stock
65 3,1/2 9/16 1,1/4 20
507A 70RH 2.3/4 x 1/2 x 1 Single Angle
£103.46
-
12 in stock
70 2,3/4 1/2 1 18
507A 70RH 3 x 5/8 x 1 Single Angle
£134.28
-
1 in stock
70 3 5/8 1 20
507A 70RH 3 x 5/8 x 1.1/4 Single Angle
£134.28
-
1 in stock
70 3 5/8 1,1/4 20
507A 70RH 3.1/2 x 9/16 x 1.1/4 Single Angle
£158.50
-
13 in stock
70 3,1/2 9/16 1,1/4 20
507A 70LH 2.3/4 x 1/2 x 1 Single Angle
£103.46
-
20 in stock
70 2,3/4 1/2 1 18
507A 70LH 2.3/4 x 1/2 x 1.1/4 Single Angle
£103.46
-
11 in stock
70 2,3/4 1/2 1,1/4 18
507A 70LH 3 x 5/8 x 1 Single Angle
£134.28
-
3 in stock
70 3 5/8 1 20
507A 80RH 2.3/4 x 1/2 x 1 Single Angle
£103.46
-
2 in stock
80 2,3/4 1/2 1 18
507A 80LH 2.3/4 x 1/2 x 1 Single Angle
£103.46
-
1 in stock
80 2,3/4 1/2 1 18
507A 45RH 63 x 18 x 22 Single Angle
£151.22
-
1 in stock
45 63 18 22 18
507A 45RH 75 x 12 x 27 Single Angle
£134.28
-
3 in stock
45 75 12 27 18
507A 60RH 50 x 12 x 16 Single Angle
£96.84
-
1 in stock
60 50 12 16 18
507A 60RH 63 x 18 x 22 Single Angle
£138.69
-
8 in stock
60 63 18 22 18
507A 60RH 75 x 19 x 27 Single Angle
£156.29
-
4 in stock
60 75 19 27 18
507A 65RH 50 x 12 x 16 Single Angle
£96.84
-
3 in stock
65 50 12 16 18
507A 65RH 63 x 18 x 22 Single Angle
£136.48
-
1 in stock
65 63 18 22 18
507A 70RH 63 x 18 x 22 Single Angle
£134.28
-
12 in stock
70 63 18 22 18
507A 70RH 80 x 32 x 22 Single Angle
£275.15
-
2 in stock
70 80 32 22 20
507A 70LH 63 x 18 x 22 Single Angle
£134.28
-
4 in stock
70 63 18 22 18
507A 75RH 63 x 18 x 22 Single Angle
£134.28
-
11 in stock
75 63 18 22 18
507A 75LH 63 x 18 x 22 Single Angle
£134.28
-
3 in stock
75 63 18 22 18
507A 80RH 63 x 18 x 22 Single Angle
£134.28
-
12 in stock
80 63 18 22 18
507A 80RH 80 x 22 x 27 Single Angle
£215.72
-
1 in stock
80 80 22 27 20
507A 80RH 80 x 32 x 22 Single Angle
£275.15
-
2 in stock
80 80 32 22 20
507A 80LH 63 x 18 x 22 Single Angle
£134.28
-
3 in stock
80 63 18 22 18
507A 85RH 63 x 18 x 22 Single Angle
£145.29
-
3 in stock
85 63 18 22 18
507A 85RH 80 x 32 x 22 Single Angle
£275.15
-
2 in stock
85 80 32 22 20
The following similar tools may be supplied to special order: the quantity ordered determines the unit price:
Unlisted diameters, angles and bore sizes Cutters to customer drawings
Cutters in cobalt or PM-material Cutters in solid carbide
Cutters with brazed carbide tips
Cutters with radiused tips - a small radius may be routinely applied where it is necessary to break the sharpness of the tip -
however, where the tip radius is sufficiently large or is required to make a controlled shape, form relief of the shape is recommended.
Special geometry cutters optimised for cutting particular materials.
Cutters matched closely on diameter for use in gangs, full details will be required.
