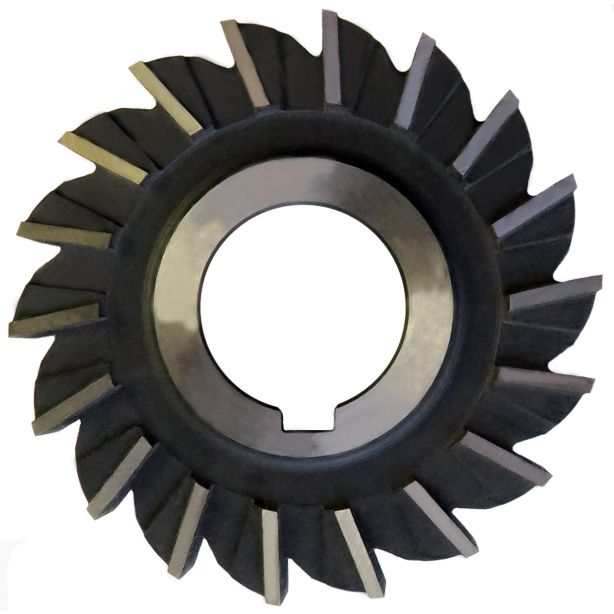

503A Side and Face Cutters - Straight

M2 High Speed Steel                Straight teeth (over 3/4” wide may have spiral teeth)              BSS 122 part 1 (1953)
Bores with standard keyway (BSS122 or DIN 138)                                                                 DIN885 Form B Type H

Cutters for general-purpose metal removal in most materials. Cutting teeth on both sides and on face. Suitable
for continuous slotting and rebating operations at faster rates than are possible with shank-type tools.

*The number of teeth shown for the fractional (inch) sizes is that normally followed in UK, although BS122 itself does
not specify the number of teeth. Stock may include, however, cutters made primarily for the USA market, where default
tradition is for slightly larger numbers of teeth. Therefore we reserve the right to provide cutters with slightly different
numbers of teeth to those shown. In case a variation in the number of teeth is not acceptable, customers are requested
to make that very clear at the enquiry stage. If cutters are to be made to special order, other tooth numbers may be
specified, the quantity ordered determining the unit price
