501A Cylindrical Mills (Plain or Slab Mills)

In stock

SKU

501A

M2 High Speed Steel                      30° - 35° Right Hand Spiral                               BSS 122 part 1 (1953)

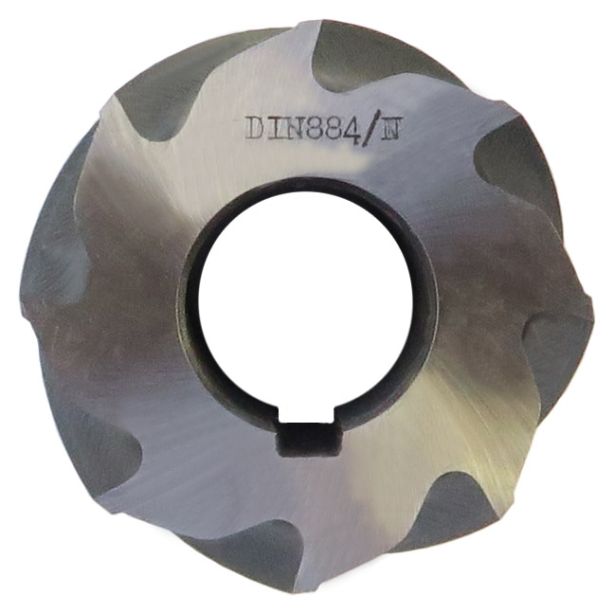

Bores with standard keyway (BSS122 or DIN 138)                                                             DIN884 Type N

Cutters for general-purpose metal removal in most ferrous materials. As standard, they do not have side teeth
and therefore are suitable for milling surfaces no wider than the face of the tool– they are unsuitable for slots.
They provide a good milled surface finish at reasonable rates of cut in ferrous and other medium-strength
materials.

Note - these tools are no longer being made for stock, although large stocks currently exist. They may be made to
special order. Existing stocks similar to a requirement may be available and can be offered - please enquire.

Grouped product items
Product Name	Diameter	Width	Bore Size	Keyway	Number Teeth
501A 2.1/2 x 1.1/2 x 1 Plain Mill £143.09 - 1 in stock	2,1/2	1,1/2	1	1/4	8
501A 2.1/2 x 2.3/4 x 1 Plain Mill £184.91 - 1 in stock	2,1/2	2,3/4	1	1/4	8
501A 3 x 3 x 1 Plain Mill £272.95 - 1 in stock	3	3	1	1/4	10
501A 3 x 3 x 1.1/4 Plain Mill £272.95 - 1 in stock	3	3	1,1/4	5/16	10
501A 3 x 3.1/2 x 1 Plain Mill £308.18 - 1 in stock	3	3,1/2	1	1/4	10
501A 3 x 4 x 1.1/4 Plain Mill £308.18 - 1 in stock	3	4	1,1/4	5/16	10
501A 4 x 1.1/2 x 1 Plain Mill £290.57 - 1 in stock	4	1,1/2	1	1/4	12
501A 4 x 4 x 1.1/4 Plain Mill £563.52 - 1 in stock	4	4	1,1/4	5/16	12
501A 40 x 50 x 16mm Plain Mill £114.46 - 4 in stock	40	50	16	4	8
501A 50 x 25 x 22mm Plain Mill £110.07 - 2 in stock	50	25	22	6	8
501A 50 x 63 x 22mm Plain Mill £154.08 - 2 in stock	50	63	22	6	8
501A 50 x 80 x 22mm Plain Mill £191.52 - 4 in stock	50	80	22	6	8
501A 63 x 50 x 27mm Plain Mill £169.50 - 8 in stock	63	50	27	7	8
501A 63 x 90 x 27mm Plain Mill £248.74 - 1 in stock	63	90	27	7	8
501A 80 x 36 x 32mm Plain Mill £200.30 - 8 in stock	80	36	32	8	10
501A 80 x 63 x 32mm Plain Mill £268.57 - 2 in stock	80	63	32	8	10
501A 80 x 80 x 32mm Plain Mill £303.75 - 7 in stock	80	80	32	8	10
501A 80 x 80 x 32mm N Plain Mill £303.75 - 7 in stock	80	80	32	-	10
501A 80 x 100 x 32mm Plain Mill £387.42 - 17 in stock	80	100	32	8	10
501A 100 x 40 x 40mm Plain Mill £292.77 - 4 in stock	100	40	40	10	10
501A 100 x 90 x 40mm Plain Mill £506.28 - 2 in stock	100	90	40	10	10
501A 100 x 110 x 40mm Plain Mill £620.75 - 1 in stock	100	110	40	10	10
501A 125 x 80 x 40mm Plain Mill £739.63 - 2 in stock	125	80	40	10	12

Details

* Number of teeth (Z) in cutters may not cover all the current residual stocks, and cutters with small differences in the number of teeth
to those shown above may be supplied.

Special plain mills may be supplied to dimensions other than those shown, the quantity ordered determining the unit price.
Non-standard features which may be specified include teeth with side clearance, radiused or chamfered corners, tooth faces including
chipbreakers, and mills in M35 or M42 cobalt material. Cutters may be manufactured as interlocking which increases the useful
face width.
