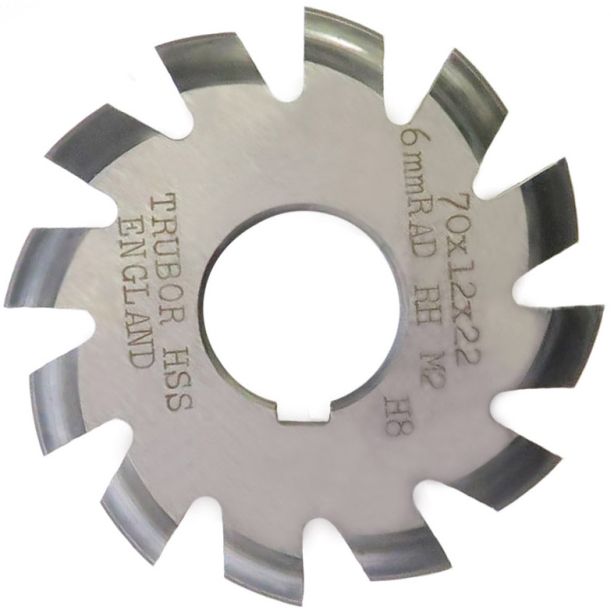

515A Corner Radius Cutter

In stock

SKU

515A

M2 High Speed Steel                                    Form relieved teeth                               BSS122 Part 1 / DIN6513 Typ N
Bores with standard keyway (BSS122 / DIN138)

Cutters with a concave form for cutting a convex quarter-circle on the component. Teeth are Machine Relieved
so that the profile is accurately retained on successive regrinds and very long cutter life is obtained.
no longer made for stock, although stock do remain. Otherwise, can be made to order.
Can be supplied either right hand or left hand cutting. If no mention, Right Hand may be assumed.

*The number of teeth shown is that of current production. Rarely, existing stock may have slightly different numbers of
teeth and these will be supplied until stock is exhausted.

Grouped product items
Product Name	Radius	Diameter of Cutter	Width	Bore Size	Number Teeth
515A R=1/8 L/H Corner Radius Cutter £129.87 - 1 in stock	1/8 LEFT	2,1/4	5/16	1	12
515A R=1/8 Corner Radius Cutter £129.87 - 1 in stock	1/8	2,1/4	5/16	1	12
515A R=9/16 Corner Radius Cutter £308.18 - 1 in stock	9/16	3,1/2	1	1	10
515A R=3 Corner Radius Cutter £145.29 - 4 in stock	R=3	63	6	22	12
515A R=6 Corner Radius Cutter £187.10 - 10 in stock	R=6	70	12	22	10
515A R=8 Corner Radius Cutter £253.14 - 9 in stock	R=8	80	16	27	10
515A R=10 Corner Radius Cutter £286.17 - 7 in stock	R=10	90	20	27	10

Details

**non-standard item to DIN856N with regard to cutter diameter and bore size.

The following similar tools may be supplied to special order: the quantity ordered determines the unit price
UNLISTED RADII or CUTTER DIAMETER                                      CUTTERS to CUSTOMER DRAWINGS
CUTTERS in COBALT OR PM-MATERIAL
CUTTERS in SOLID CARBIDE (VHM) CNC-GROUND FORM
DOUBLE CORNER RADIUS CUTTERS (i.e., with a concave radius on both corners - formerly No. 516A - was in BS122)
